NM01TAB24514X14

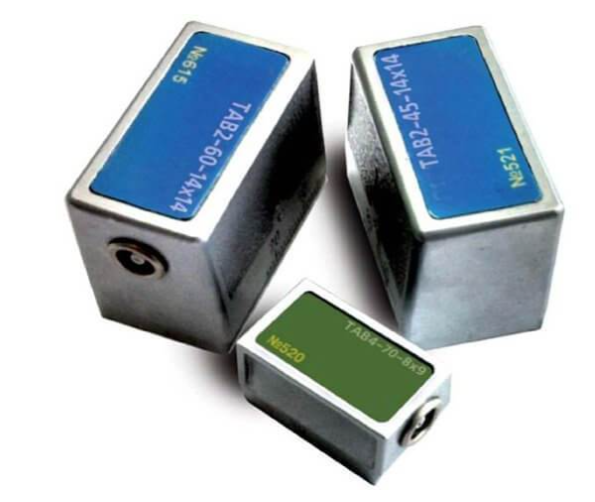

The OKO-NDT Angle Beam Probe TAB is a high-quality, single-element ultrasonic transducer designed for precise flaw detection in various materials using angle beam techniques. This probe is engineered for non-destructive testing (NDT) applications where the detection of defects at specific angles is crucial.

Operating at a frequency of 2.0 MHz, this probe offers a balance between penetration and resolution, making it suitable for a wide range of materials and inspection depths. The 45° angle beam allows for the detection of flaws that are not perpendicular to the surface, such as cracks and inclusions in welds and pipes.

The active element of the probe measures 14 x 14 mm, providing a focused and consistent ultrasonic beam. The Lemo 00 connector ensures a secure and reliable connection to ultrasonic testing equipment, minimizing signal loss and ensuring accurate data acquisition.

Manufactured by OKO-NDT, a reputable provider of NDT equipment, the Angle Beam Probe TAB is built to exacting standards, ensuring durability and reliability in demanding industrial environments.

Key Features and Benefits:

• 2.0 MHz Frequency: Provides a balance of penetration and resolution.

• 45° Angle Beam: Enables detection of flaws at specific angles.

• Single Element Design: Simplifies operation and provides reliable performance.

• 14 x 14 mm Active Element: Offers a focused and consistent ultrasonic beam.

• Lemo 00 Connector: Ensures a secure and reliable connection.

• OKO-NDT Quality: Manufactured by a trusted provider of NDT equipment.

Applications:

• Weld Inspection: Detecting cracks and other defects in welded joints.

• Pipe Inspection: Inspecting pipes for flaws, including cracks and corrosion.

• Pressure Vessel Inspection: Ensuring the integrity of pressure vessels.

• Structural Inspection: Detecting flaws in structural components.

• General NDT: Various applications requiring angle beam ultrasonic testing.




Technical Details:

• Frequency:2.0MHz

• Refracted Angle: 45°

• Element Size: 14x14, 0.550x0.550

• Type of Case: Plated brass

• Connector Type: Lemo00

• Connector Position: Side
