Labino UVG3 2.0 Midlight Kit | Professional UV-A LED Torch
High-Intensity, Consistent UV-A Output for NDT Professionals
The Labino UVG3 2.0 is a compact, handheld UV-A LED torch designed for high-performance inspections in the field or the lab.The "Midlight" version is engineered to provide a balanced beam profile—wide enough for general scanning but concentrated enough to highlight the smallest indications. Built to withstand the rigors of industrial environments, the UVG3 2.0 is compliant with the most stringent NDT standards, including ASTM E3022-18 and Rolls-Royce RRES 90061.
Key Performance Features
Midlight Beam Profile: Provides an intensity of approximately $4,500$$\mu$W/cm² at 15 inches (38 cm), with a beam diameter of approximately 4 inches. This makes it ideal for both localized weld inspection and broader component surveys.
Instant-On Performance: Unlike older bulb-style lamps, the UVG3 2.0 reaches full power immediately without a warm-up cycle.
Constant Intensity: Equipped with specialized internal electronics that maintain a constant UV-A output even as the battery drains, ensuring inspection integrity from start to finish.
Industrial Durability: IP65 rated against dust and water splashes. The aviation-grade aluminum body is designed for heavy-duty use, and the included rubber bumper provides extra impact protection.
Pure UV-A: Utilizing a high-quality filter, the torch emits virtually zero visible light (less than 20 lux / 2 foot-candles), providing maximum contrast for fluorescent particles.
Technical Specifications
| Feature | Specification |
| Light Source | 1 UV-A LED (365 nm) |
| Peak Wavelength | 365 nm ± 5 nm |
| Intensity (Midlight) | Approx. $4,500$$\mu$W/cm² at 15" |
| Battery Life | ~3.0 Hours continuous use per battery |
| Charging Time | ~2.0 Hours |
| Compliance | ASTM E3022-18, ISO 3059-12, RRES 90061 |

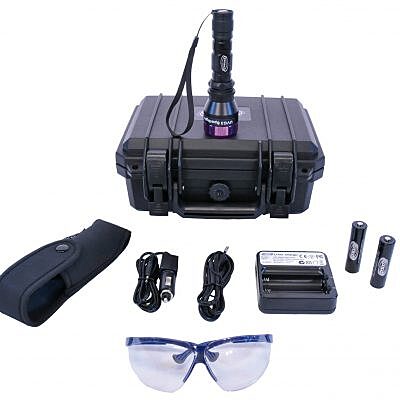

Kit Contents (Universal Midlight Kit)
The Labino UVG3 2.0 Kit is a complete, turn-key solution for NDT inspectors:
Labino UVG3 2.0 Lamp (Midlight version)
2 Li-ion Batteries (High-capacity for back-to-back shifts)
Universal Battery Charger (Wall plug)
Car Charger (12V DC for field charging)
Belt Holster (Heavy-duty nylon for hands-free transport)
Rubber Bumper (Shock-absorbing head protection)
UV Block Goggles (Essential for eye safety and contrast enhancement)
Rugged Carrying Case (Padded for safe transit)
