NM01CJS017S0.3

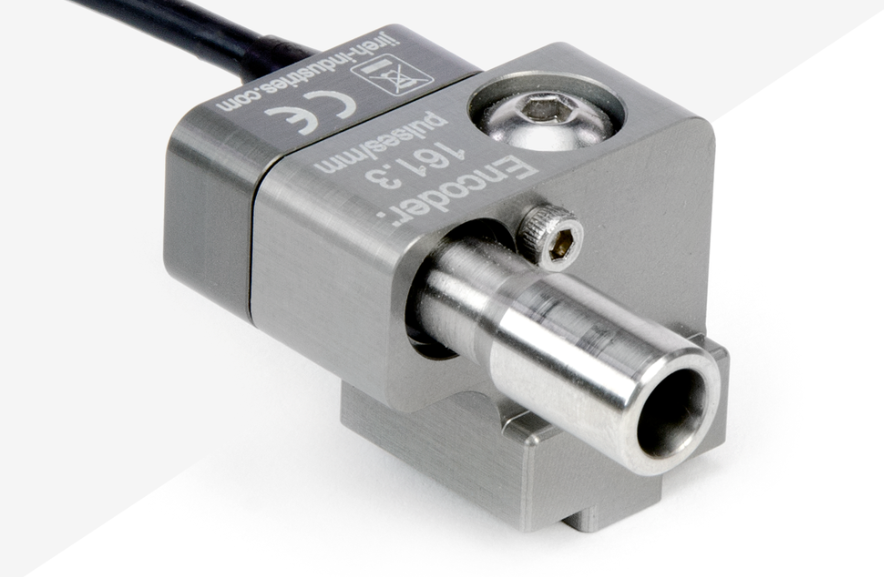

The JIReH Slider PPS Encoder is a key component for achieving precise lateral probe positioning within compatible slider systems. This encoder is specifically designed to interface with the encoded lead screw of the slider mechanism, providing highly accurate feedback on the probe's movement along the scanning axis.

Featuring a 30 cm (11.8 inch) cable length, this particular encoder is well-suited for setups with limited space or applications requiring shorter travel distances. It plays a critical role in ensuring the integrity and reliability of ultrasonic inspection data by enabling precise correlation between the acquired signals and the exact location of the probe.

Engineered by JIReH, a recognized innovator in non-destructive testing solutions, this encoder delivers high resolution and dependable performance, contributing to the overall accuracy and efficiency of your encoded scanning system.

Key Selling Points:

• Accurate Lateral Position Tracking: Provides precise feedback on the probe's linear movement.

• Designed for Slider Systems: Integrates seamlessly with compatible slider probe positioners.

• Compact Cable Length: Ideal for space-constrained environments and shorter scan lengths.

• High-Resolution Output: Ensures detailed and accurate positional data.

• Reliable Performance: Engineered for consistent and dependable operation.

• Essential for Encoded Scanning: Enables accurate data mapping and analysis based on probe location.

Benefits:

• Improves Data Accuracy: Precise positional information leads to more reliable inspection results.

• Enhances Scan Repeatability: Ensures consistent probe placement for comparable data sets.

• Optimizes Inspection Efficiency: Accurate encoding facilitates streamlined data analysis and interpretation.

• Designed for Compatibility: Integrates seamlessly with compatible slider probe positioning systems.

• Ensures Reliable Operation: Built to withstand the demands of typical inspection environments.

Applications:

The JIReH Slider PPS Encoder with a 30 cm cable is typically utilized in:

• Encoded ultrasonic inspection systems employing slider-style probe positioners.

• Weld inspection scanners where precise lateral encoding is required.

• Semi-automated and automated inspection setups demanding accurate probe tracking.

• Applications with restricted space envelopes.

The JIReH Slider PPS Encoder with a 30 cm cable is a crucial element for achieving accurate and reliable encoded ultrasonic inspections when using compatible slider probe positioning systems, ensuring precise correlation between the collected ultrasonic data and the probe's exact position along the scanning axis.
