NM01RED1

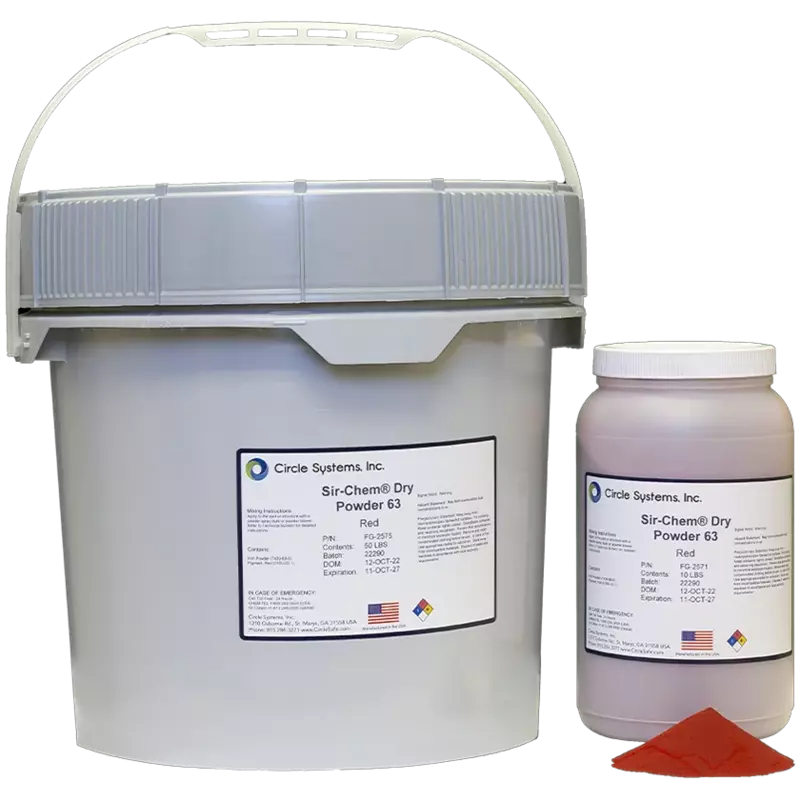

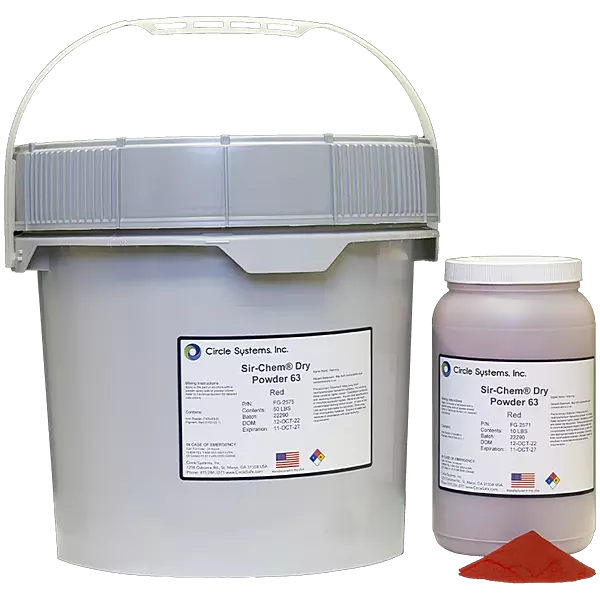

Red Magnetic Inspection Powder #63 is a high-quality, nonfluorescent magnetic particle powder specifically formulated for the dry method of Magnetic Particle Inspection (MPI). Its vibrant red color provides exceptional contrast against most metallic surfaces when viewed under normal visible light, eliminating the need for specialized UV illumination.

This powder is designed to effectively detect surface and shallow subsurface discontinuities in ferromagnetic materials, such as cracks, seams, laps, and inclusions. Its fine particle size ensures high sensitivity, allowing for the clear and reliable indication of even minute to medium-sized flaws.

Key Advantages and Features:

• Excellent Visual Contrast: The bright red color stands out distinctly on lighter-toned or reflective metal surfaces, making flaw indications readily apparent to the inspector.

• Convenient Dry Application: Applied directly to the magnetized test piece in dry form (typically dusted or puffed on), this method is advantageous for inspecting large areas, rough surfaces, and components that may be at elevated temperatures (within the powder's specified limits).

• High Sensitivity: The powder's formulation and fine particle size enable it to be easily attracted to the magnetic leakage fields created by discontinuities, resulting in clear and well-defined indications.

• Broad Industry Compliance: Reputable manufacturers ensure their Red #63 powder meets or exceeds critical industry standards, including ASTM E 1444, ASTM E 3024, AMS 3040, MIL-STD-271, NAVSEA 250-1500-1, and NTR-1E, ensuring its suitability for use in critical applications across various industries.

• Optimized Particle Size: With a typical average particle size around 75-80 micrometers, the powder offers a balance of excellent mobility for indication formation and sufficient size for easy visual detection.

• Versatile Applications: Red #63 powder is widely used for inspecting a diverse range of ferromagnetic components, including:

  • Welds on structural steel, pipelines, and pressure vessels.

  • Castings and forgings to identify surface defects.

  • Machined parts and components susceptible to fatigue cracking.

  • General fabrication and maintenance inspections.

• Temperature Considerations: While designed for dry application, it's important to be aware of the powder's temperature limitations. Typically, Red #63 powder can be used up to around 600°F (315°C), but it's crucial to consult the specific manufacturer's data sheet for accurate temperature operating ranges.

• Simplified Inspection Process: The nonfluorescent nature of the powder streamlines the inspection process by eliminating the need for dark environments and UV light sources.

In summary, Red Magnetic Inspection Powder #63 is a dependable and effective consumable for magnetic particle testing, offering superior visual contrast and high sensitivity for the detection of surface and near-surface flaws in ferromagnetic materials using a convenient dry application method. Its adherence to industry standards makes it a trusted choice for NDT professionals across a wide range of industrial applications.
