NM01FP9235G

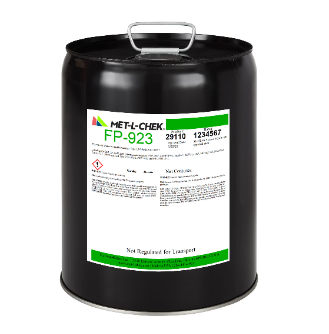

MET-L-CHEK FP-923 Bulk Fluorescent Water Washable Penetrant (Level 3, PMC 4360 Qualified) - 5 Gallon Pail

The MET-L-CHEK FP-923 is a premium, Level 3 high-sensitivity fluorescent penetrant, specifically formulated for the water washable (Method A) process of Liquid Penetrant Inspection (LPI). Supplied in a robust 5-gallon (18.9 Liter) pail, FP-923 stands out due to its qualification to the rigorous Pratt & Whitney PMC 4360 specification, making it a preferred choice for aerospace and other critical applications where stringent material compatibility and superior crack detection are paramount.

Key Features & Benefits:

• Ultra-High Sensitivity (Level 3): As an AMS-2644 Level 3 penetrant, FP-923 offers exceptional sensitivity for detecting even the most minute and tight surface-breaking discontinuities, such as fatigue cracks, stress corrosion cracks, grinding cracks, and porosity, crucial for high-integrity components.

• Fluorescent Indication: When exposed to UV-A (black) light, indications fluoresce with a brilliant yellow-green color, providing outstanding contrast and clarity against a dark background, ensuring reliable defect identification.

• Water Washable (Method A): Excess penetrant is easily removed from the test surface using a simple water rinse. This method is efficient, economical, and suitable for high-volume inspection environments and complex part geometries.

• Pratt & Whitney PMC 4360 Qualification: This critical approval signifies that FP-923 meets the extremely demanding material property requirements set by Pratt & Whitney for use on aerospace engine components. This includes very low levels of halogens (chlorine, fluorine) and sulfur, ensuring it is safe for use on sensitive alloys (e.g., titanium, nickel-based alloys) without causing embrittlement or corrosion.

• Excellent Wettability & Penetration: Formulated to spread quickly and evenly across the test surface, ensuring optimal coverage and maximum penetration into defects, leading to reliable and consistent results.

• Low Toxicity & Environmental Profile: Designed with user safety and environmental considerations in mind, typically featuring a low odor and a favorable health profile compared to some solvent-based alternatives.

• Met-L-Chek Quality: Manufactured by MET-L-CHEK, a globally recognized leader in NDT consumables, guaranteeing consistent product quality, batch-to-batch uniformity, and reliable performance essential for critical inspections.

• Comprehensive Compliance: Fully qualified and meets or exceeds the stringent requirements of numerous international and industry specifications:

  • AMS-2644 (Type 1, Method A, Sensitivity Level 3)

  • Pratt & Whitney PMC 4360

  • ASME Boiler and Pressure Vessel Code, Section V

  • ASTM E-165 / ASTM E-165M

  • ASTM E-1417 (Standard Practice for Liquid Penetrant Testing)

  • ISO-3452-2

  • MIL-I-25135 (Qualified Products List)

Specifications:

• Manufacturer: MET-L-CHEK Company

• Product Name: FP-923

• Volume: 5 US Gallons (18.9 Liters)

• Type: Fluorescent (Type 1)

• Method: Water Washable (Method A)

• Sensitivity Level: 3 (Very High)

• Qualification: Pratt & Whitney PMC 4360

• Color (Fluorescent): Yellow-Green

• Operating Temperature Range: (Typically 4∘C to 52∘C / 40∘F to 125∘F)

• Flash Point: Non-flammable (typically >93∘C / >200∘F for the base penetrant, but effectively non-flammable due to water content)

• Recommended Associated Products: MET-L-CHEK D-100A (Dry Developer) or D-106B (Water Soluble Developer), or D-1100 (Non-Aqueous Developer).

Typical Applications:

• Critical aerospace component inspection (e.g., turbine blades, engine parts, structural components).

• High-integrity inspections in nuclear, defense, and power generation industries.

• Detection of extremely fine cracks in welds, castings, forgings, and machined components.

• Quality control in manufacturing where maximum sensitivity and material compatibility are paramount.

• In-service inspections of critical machinery and structures.
