NM01QS5B

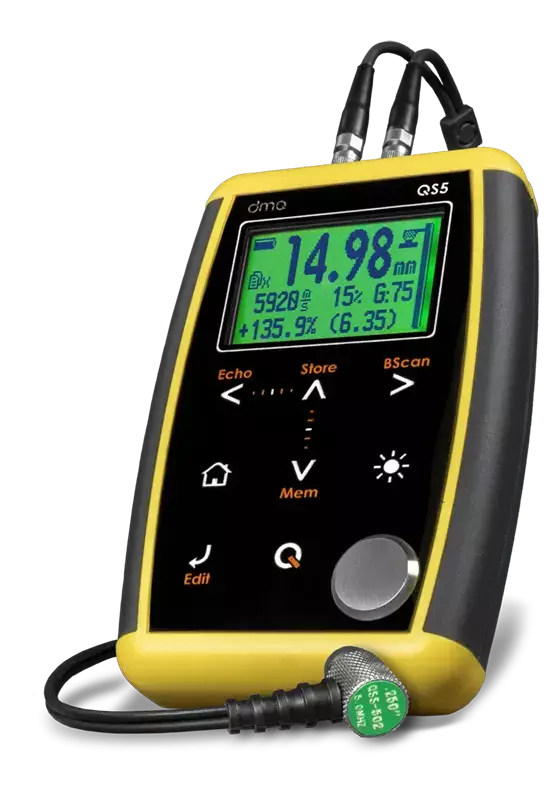

Demeq QS5 B: Advanced Ultrasonic Wall Thickness and Corrosion Gauge with B-Scan

The Demeq QS5 B is a versatile and high-performance ultrasonic thickness gauge designed for accurate measurement of wall thickness and detection of corrosion. Equipped with advanced features including B-Scan imaging, it provides a comprehensive assessment of material integrity in various industrial applications.

Key Features:

• B-Scan Display: Offers a real-time cross-sectional view of the material, aiding in the visualization and analysis of thickness variations, corrosion, and pitting.

• Wide Measurement Range: Capable of measuring thickness from 0.6 mm to 500 mm (depending on the transducer used) in pulse-echo mode, suitable for a broad range of materials.

• Corrosion and Pitting Detection: Features a material condition analyzer to help identify corrosion and pitting within the material.

• Adjustable Gain and Trigger: Allows for optimization of the ultrasonic signal for different materials and inspection conditions.

• Capture Minimum Thickness: Automatically captures and displays the minimum thickness reading during a scan.

• Statistical Analysis: Provides basic statistical functions on collected measurements.

• On-Screen Material Velocity Chart: Offers a quick reference for material sound velocities.

• High Data Storage Capacity: Can store up to 32,000 readings.

• Data Output: Features USB and RS232 connectivity for data transfer to a PC.

• Versatile Material Compatibility: Measures on various materials including metals (coated and uncoated), plastics, acrylics, ceramics, and glass.

• Alarm Functionality: Includes user-defined high and low alarms with visual and audible indicators.

• Automatic Calibration: Offers simple, one-point automatic calibration.

Benefits:

• Enhanced Corrosion Assessment: The B-Scan feature provides a visual representation of corrosion and material loss.

• Versatile Measurement Capabilities: Suitable for a wide range of materials and thicknesses.

• Improved Inspection Reliability: Advanced features aid in accurate flaw detection and thickness monitoring.

• Efficient Data Management: Large memory and data output options facilitate easy recording and analysis of inspection results.

• User-Friendly Operation: Intuitive interface and features simplify the inspection process.

The Demeq QS5 B is an excellent choice for professionals requiring a comprehensive ultrasonic thickness and corrosion gauge with advanced imaging capabilities for detailed material assessment.
