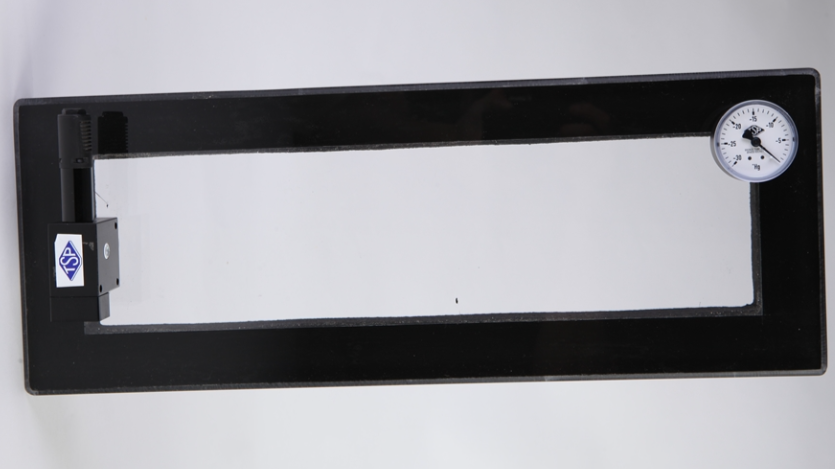

TSP — 20" Flat Bottom Vacuum Leak Testing Box
Flat Bottom Vacuum Box for Weld Leak Testing on Tanks, Seams & Plate Joints SKU: 10020FBOverview
The TSP 20" Flat Bottom Vacuum Leak Testing Box is a practical inspection tool designed for vacuum leak testing of flat weld seams, plate joints, and storage tank applications. Built for non-destructive testing workflows, this vacuum box helps inspectors verify weld integrity by creating a vacuum over the test area and allowing visual leak detection through bubble formation.
The 20" flat bottom design provides efficient inspection coverage for tank bottom seams, plate-to-plate joints, fabrication welds, and maintenance inspections. Its clear viewing area supports fast visual inspection, helping technicians quickly identify leaks, pinholes, and discontinuities during testing.
The TSP 10020FB is suitable for field and shop use in storage tank inspection, fabrication, repair, and quality control applications where reliable flat surface weld leak testing is required.
What's Included
| Item | Details |
|---|---|
| Vacuum Box | 20" flat bottom vacuum leak testing box |
| Configuration | Flat bottom design |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 22.0 in |
| Width | 9.0 in |
| Height | 5.0 in |
| Dimensions (L × W × H) | 22.0 × 9.0 × 5.0 in |
| Weight | 15.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Vacuum leak testing box |
| Model | 20" Flat Bottom Box |
| Application | Vacuum leak testing |
| Inspection Area | Flat weld seams, plate joints, and tank bottoms |
| Configuration | Flat bottom |
| Manufacturer | TSP |
| SKU | 10020FB |
Performance Features
Flat Weld Seam Testing
Designed for vacuum leak testing on flat weld seams, tank bottoms, and plate joints.
20" Inspection Coverage
Provides practical coverage for routine weld sections during tank and fabrication inspections.
Visual Bubble Leak Detection
Supports reliable identification of leaks, pinholes, and discontinuities when used with leak detection solution.
Field-Ready Construction
Built for professional NDT use in shop, field, and tank inspection environments.
User-Friendly Design
- Practical flat bottom configuration
- Clear viewing area for visual leak detection
- Portable design for field use
- Suitable for routine weld inspection workflows
- Designed for efficient vacuum box testing procedures
Built for Industrial Environments
- Durable construction for repeated inspection use
- Reliable performance in fabrication and maintenance settings
- Suitable for storage tank, vessel, and seam inspection
- Built for professional NDT and QA/QC applications
Compatibility
Compatible with:
- Vacuum leak testing procedures
- Bubble leak detection solutions
- Storage tank bottom inspections
- Flat weld seam inspection workflows
- Field and shop NDT programs
Ideal Applications
- Flat bottom weld leak testing
- Storage tank inspection
- Tank bottom seam verification
- Plate joint inspection
- Fabrication quality control
- Maintenance and repair inspection
- Field vacuum box testing
About TSP
TSP manufactures practical vacuum leak testing equipment for professional NDT applications. Their vacuum boxes are designed to support reliable weld leak detection, field portability, and efficient inspection workflows for tanks, seams, plate joints, and industrial fabrication environments.
