NM0325011

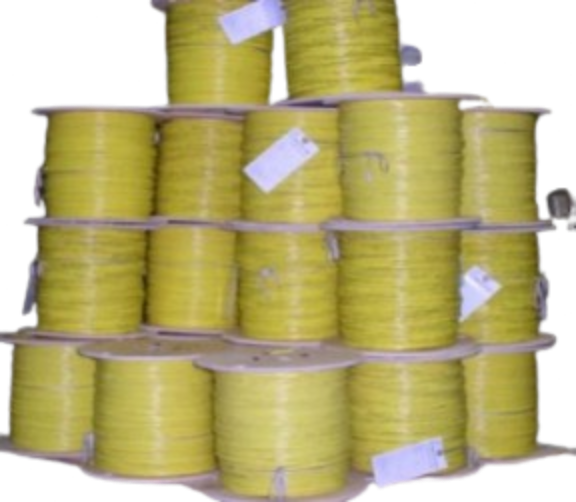

The EHS Thermocouple Extension Wire UP/ALPTW-20-KX is your reliable solution for extending the reach of Type K thermocouples while maintaining exceptional signal accuracy. This high-quality extension wire, provided on a generous 1080-foot spool, is specifically designed to accurately transmit the thermoelectric voltage generated by Type K sensors over significant distances, making it ideal for a wide range of industrial and laboratory applications.

The UP/AL designation indicates the use of positive and negative conductor materials compatible with the Chromel and Alumel alloys of Type K thermocouples, ensuring the integrity of your temperature readings. The PTW-20 likely signifies a durable and flexible insulation and jacketing material (possibly PVC) in a 20 AWG size, offering a robust yet manageable wire for various wiring needs. The twisted pair (TW) construction effectively minimizes electromagnetic interference, guaranteeing a cleaner and more reliable signal transmission. Finally, the KX designation confirms that this is genuine Type K extension grade wire, meeting the necessary specifications for accurate temperature measurement.

Key Selling Points:

• Maintain Signal Accuracy: Specifically designed for precise signal transmission from Type K thermocouples over long distances.

• Minimize Interference: Twisted pair construction ensures a clean and reliable temperature signal.

• Durable and Flexible: Robust insulation and jacketing protect the wire in demanding environments.

• Ample Length for Large Projects: The 1080-foot spool provides a substantial supply for extensive wiring needs.

• Easy Identification: Standard Type K color-coding simplifies installation and prevents wiring errors.

Benefits:

• Accurate Temperature Monitoring: Ensures dependable temperature readings even with extended wiring.

• Reduced Data Noise: Minimizes electromagnetic interference for reliable temperature data.

• Long-Lasting Performance: Durable construction withstands various industrial conditions.

• Cost-Effective for Large Installations: The long spool offers an economical solution for extensive wiring.

• Simplified Installation: Standard color-coding makes wiring straightforward.

Applications:

• Extending thermocouple connections in industrial processing plants.

• Wiring temperature sensors to control panels and data acquisition systems in factories.

• Connecting thermocouples in large ovens, furnaces, and environmental test chambers.

• Use in extensive HVAC and building automation systems.

• Any application requiring accurate Type K thermocouple readings over a significant distance.
