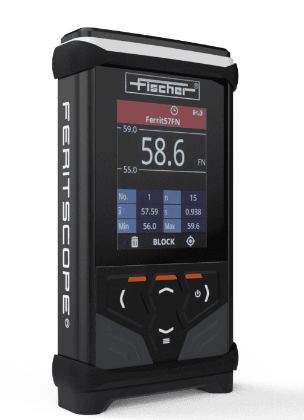

Fischer — FERITSCOPE® DMP30 Ferrite Content Gauge
Handheld Magnetic Induction Instrument for Ferrite Measurement in Austenitic & Duplex SteelsOverview
The Fischer FERITSCOPE® DMP30 is a robust handheld instrument designed for non-destructive measurement of ferrite content in austenitic and duplex steels. Using the magnetic induction method, this gauge delivers fast, accurate, and repeatable ferrite measurements with the precision expected from Fischer instruments.
Conforming to DIN EN ISO 17655, the FERITSCOPE® DMP30 is ideal for quality control, weld inspection, material verification, and process monitoring applications where ferrite content must be accurately controlled. Its interchangeable probe capability provides flexibility for a wide range of inspection tasks and component geometries.
Built with an ergonomic aluminum housing and IP64 protection, the DMP30 is designed for demanding field and shop environments. With intuitive menu navigation, graphic operating aids, a rotating color display, and large onboard memory, this instrument supports efficient inspection workflows and reliable documentation.
What's Included
| Item | Details |
|---|---|
| FERITSCOPE® DMP30 Unit | Handheld ferrite content measurement instrument |
| Probe | FGAB1.3-FE probe included |
| Standard Set | Full range standard set included |
| Carrying Case | Compact protective carrying case |
| Quick Guide | English quick guide |
| Interface Cable | USB data transfer cable |
| Rechargeable Battery | Lithium battery |
| Bluetooth Dongle | Wireless data transfer accessory |
| Carrying Strap | Strap with panic lock |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 16.0 in |
| Width | 12.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 16.0 × 12.0 × 6.0 in |
| Weight | 6.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Ferrite content gauge |
| Model | FERITSCOPE® DMP30 |
| Measurement Method | Magnetic induction |
| Material Applications | Austenitic and duplex steels |
| Standard Compliance | DIN EN ISO 17655 |
| Housing | Ergonomic aluminum |
| Protection Rating | IP64 shockproof, dustproof, and waterproof |
| Display | High-contrast color rotating display |
| Operation | One-handed, 4-key control |
| Data Storage | 250,000 readings in up to 2,500 batches |
| Interface | USB + Bluetooth dongle |
| Battery | Rechargeable lithium battery |
| Runtime | Up to 24 hours |
| Languages | 22 selectable languages |
| Probe Support | Digital probes and F-probes with optional adapter |
Performance Features
Non-Destructive Ferrite Measurement
Measures ferrite content in austenitic and duplex steels without damaging the component.
Magnetic Induction Technology
Provides fast, precise, and reliable readings for professional inspection workflows.
DIN EN ISO 17655 Compliance
Supports ferrite measurement requirements for welds and stainless steel inspection.
Large Data Capacity
Stores up to 250,000 values across 2,500 batches for detailed reporting and traceability.
User-Friendly Design
- Ergonomic aluminum housing for comfortable handling
- One-handed operation using four keys
- Rotating color display for easy viewing at any angle
- Graphic operating aids guide users step-by-step
- Visual, haptic, and acoustic alerts for limit values
Built for Industrial Environments
- Shockproof, dustproof, and waterproof IP64 design
- Robust probe connector for demanding use
- Rechargeable battery supports up to 24 hours of operation
- USB and Bluetooth data transfer options
- Designed for field, shop, and laboratory inspection workflows
Compatibility
Compatible with:
- FGAB1.3-FE ferrite measurement probe
- Fischer digital probes
- Fischer F-probes with optional DMP-F-PROBE-ADAPTER
- USB data transfer workflows
- Bluetooth wireless data transfer using included dongle
Ideal Applications
- Ferrite content measurement
- Austenitic stainless steel inspection
- Duplex stainless steel inspection
- Weld inspection and quality control
- Petrochemical and power generation applications
- Manufacturing and material verification
- Compliance testing to DIN EN ISO 17655
About Fischer
Fischer is a global leader in precision measurement technology, offering advanced instruments for coating thickness, material testing, conductivity, and ferrite content measurement. Their instruments are trusted worldwide for accuracy, durability, and dependable performance in demanding industrial inspection environments.
