NM01SCR225

This is a Set Screw with the following specifications:

• Thread Size: 8-32: This indicates the thread size. "8" refers to the nominal diameter of the screw (approximately 0.164 inches), and "32" indicates the number of threads per inch. This is a Unified National Fine (UNF) thread.

• Length: 3/16": This specifies the length of the set screw, which is 3/16 of an inch (0.1875 inches). Set screw length is typically measured from the tip of the screw to the opposite end.

• (For SS Insert): This crucial part of the description indicates the intended application or context for this specific set screw. "SS Insert" likely refers to a threaded insert made of stainless steel. This suggests that this set screw is designed to be used in conjunction with such an insert, possibly to:

  • Secure a component to a shaft or another part that has a stainless steel threaded insert. The set screw would be tightened into the insert to create a clamping force.

  • Adjust or position a component within a stainless steel threaded hole.

  • Provide a locking mechanism when tightened against a mating part within a stainless steel threaded insert.

Set screws are headless screws that are typically tightened or loosened using an internal drive, such as a hex socket (Allen head), slot, or other recess. They are commonly used to secure pulleys, gears, knobs, or other components onto shafts, or to make adjustments between parts. The short length (3/16") indicates it's for relatively small-scale applications.

The "(For SS Insert)" designation is important because it might imply specific material compatibility considerations or that these set screws are often supplied or recommended for use with stainless steel threaded inserts to prevent issues like galling or corrosion between dissimilar metals, although the material of the set screw itself isn't explicitly stated in this description.

Key Features:

• Set Screw Design: Headless screw tightened with an internal drive.

• Thread Size: 8-32 UNF: Indicates a nominal diameter of approximately 0.164 inches with 32 fine threads per inch.

• Length: 3/16" (0.1875 inches): Specifies the overall length of the set screw.

• Intended for Use with Stainless Steel Inserts (SS Insert): Suggests a specific application context and potential material compatibility considerations.

• Versatile Fastener: Used for securing, adjusting, or locking components.

• Small Size: Suitable for compact assemblies.

Applications:

• Securing components to shafts that utilize stainless steel threaded inserts.

• Adjusting or positioning parts within stainless steel threaded holes.

• Providing a locking mechanism in conjunction with stainless steel threaded inserts.

• Light-duty fastening applications where a headless screw is required.

Technical Details:

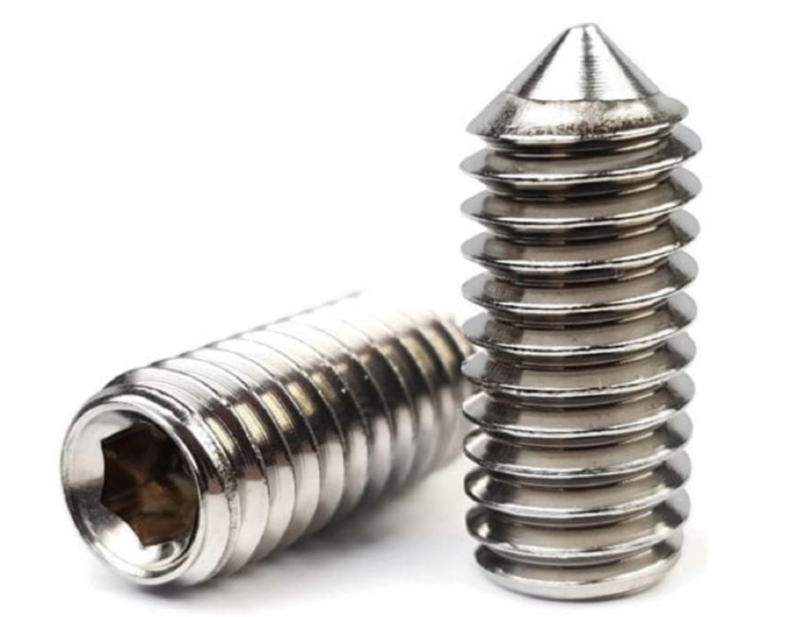

• #8-32 Socket Set Screws Cone Point 304 Stainless Steel

• Most often headless (blind), fully threaded with no head projecting past the major diameter of the screw head

• Cone point set screws have a sharp, cone-shaped point that wedges into the contact material thus delivering the strongest torsional and axial holding power of all the set screw styles

• The sharp cone point penetrates the surface, offering superior holding power for permanent setting

• 304 stainless steel is corrosion resistant. durable, and suitable for freshwater environments
