NM01MCBNCFL00M

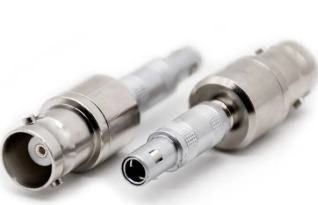

The UT Adaptor LEMO 00 male to BNC female, manufactured by MC, is a passive interconnect component designed to provide seamless connectivity between ultrasonic testing (UT) equipment and accessories that utilize different connector interfaces. This adaptor features a LEMO 00 series male connector on one end and a BNC female connector on the other, allowing for the physical and electrical connection of devices with these incompatible connector types.

Key Features:

• Connector Conversion: This adaptor effectively bridges the gap between the compact, push-pull LEMO 00 male connector and the widely used, bayonet-locking BNC female connector.

• LEMO 00 Male Interface: The male LEMO 00 connector provides a secure and reliable connection to equipment or cables equipped with a LEMO 00 female receptacle. This connector type is known for its robust design and positive locking mechanism, ensuring stable signal transmission.

• BNC Female Interface: The BNC female connector allows for the connection of cables or devices terminated with a BNC male plug. BNC connectors are prevalent in various electronic applications, including some ultrasonic testing instruments and transducers, offering a quick and reliable connection.

• Passive Operation: As a passive device, this adaptor does not alter or amplify the ultrasonic signal passing through it. It simply provides a conductive pathway between the two connected interfaces, ensuring the integrity of the transmitted signal.

• Durable Construction: Manufactured by MC, this adaptor is likely constructed from durable materials to withstand the rigors of regular use in laboratory or field environments. The quality of the materials and construction contributes to reliable performance and longevity.

• Versatile Application: This adaptor is a valuable tool for ultrasonic testing professionals who work with a diverse range of equipment from different manufacturers or systems that employ varying connector standards.

Applications:

• Connecting ultrasonic transducers with a LEMO 00 male connector to instruments or cables equipped with a BNC female connector.

• Enabling the use of cables terminated with a LEMO 00 female connector with instruments or transducers featuring a BNC male connector (when used in conjunction with appropriate cables).

• Facilitating the integration of ultrasonic testing components from different systems that utilize either LEMO 00 or BNC connectors.

• Providing flexibility in setting up ultrasonic testing configurations by overcoming connector incompatibility issues.

Importance:

• Ensures Equipment Compatibility: This adaptor eliminates the frustration and limitations caused by mismatched connector types in ultrasonic testing setups.

• Provides a Cost-Effective Solution: Using an adaptor is often a more economical alternative to replacing cables or modifying equipment with different connectors.

• Facilitates Versatility in Testing: Enables the use of a wider range of ultrasonic testing components, enhancing the flexibility and capabilities of testing procedures.

• Maintains Signal Integrity: The passive design ensures that the ultrasonic signal is transmitted reliably without distortion or loss (attributable to the adaptor itself).
