NM01DJG007E

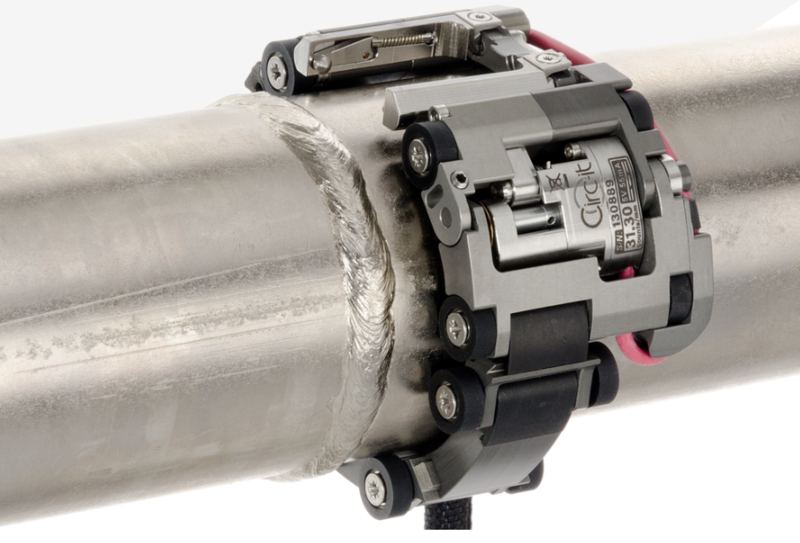

Small diameter, low profile scanning made possible with the CIRC-IT - Single Probe Weld Scanner. Designed to provide encoded probe positioning circumferentially around piping and tubing ranging in size from 21.4 - 114.3 mm (0.84 - 4.5 in), this manually operated scanner can operate in an 11 mm (0.433 in) radial clearance envelope due to the ultra low profile design.

Technical Details:

GENERAL

• Pipe Diameter Range: 21.4 mm - 114.3 mm (0.84 in - 4.5 in)

• Minimum Radial Clearance: 11 mm (0.433 in)

• Encoder: RS422 line driver, compatible with all standard encoder inputs

• Encoder Resolution: 31.30 counts/mm (795.0 counts/inch)

• Probe Holding Capacity: 1 phased array wedges

• Encoder Cable Length: 3 m (9.8 ft)

• Inspection Surface: Ferrous and non-ferrous

RADIAL CLEARANCE

• Radial Scanner Clearance: 11 mm (0.43 in)

SIZE & WEIGHT

• Scanner Height: 11 mm (0.43 in)

• Scanner Width: 53.5 mm (2.1 in)

• Scanner Depth: 105.6 mm (4.2 in)

• Scanner Weight: 0.09 kg (0.2 lb)

• Shipping weight: 3.1 kg (6.8 lb)

ENVIRONMENTAL SPECIFICATIONS

• Operating Environment: -20°C (-4°F) to 50°C (122°F)

• Environmental Sealing: Watertight (submersible), Contact JIREH for details
