NM01MCCAUT002

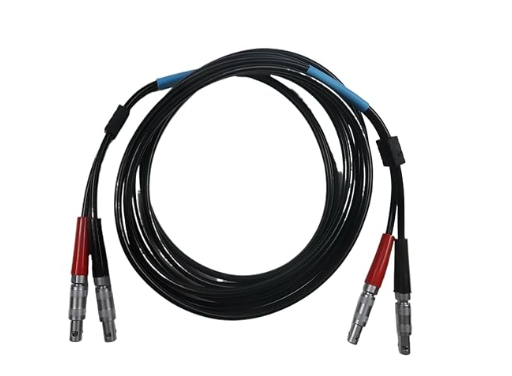

This is a high-quality ultrasonic testing (UT) cable designed to connect ultrasonic instruments featuring a Lemo 00 series connector to transducers or other instruments equipped with a Lemo 1 series connector. The cable utilizes flexible RG174 coaxial cable and has a nominal length of approximately 2 meters (6.56 feet). It is manufactured by MC.

Key Features:

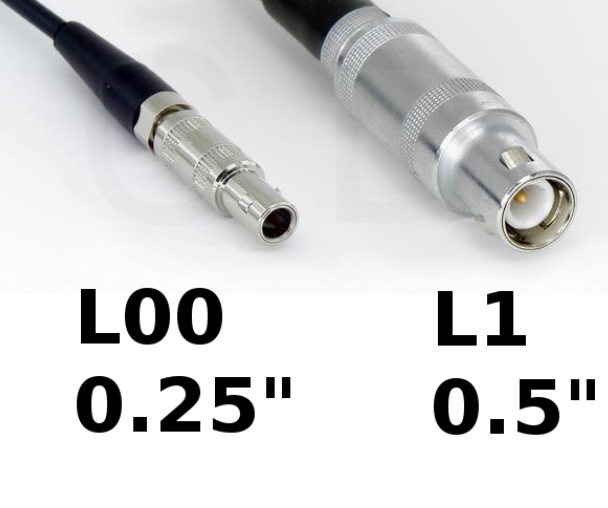

• Connector Configuration: Features a Lemo 00 series connector on one end, a compact and secure connector commonly found on various ultrasonic flaw detectors and instruments. The opposite end is terminated with a Lemo 1 series connector, a slightly larger connector also prevalent in ultrasonic testing applications for both instruments and transducers.

• RG174 Coaxial Cable: Employs RG174 cable, a lightweight and flexible coaxial cable known for its suitability in transmitting high-frequency ultrasonic signals over moderate distances with minimal signal attenuation.

• Nominal Length: The cable has a nominal length of 2 meters (approximately 6.56 feet), providing a practical working distance between the ultrasonic equipment and the inspection area. The "6 FT" designation is an approximate equivalent.

• MC Manufacturing: Manufactured by MC, indicating a specific supplier and suggesting adherence to their quality control standards for cable assemblies.

• Single Coaxial Design: This is a single coaxial cable assembly intended for standard pulse-echo ultrasonic testing with single-element transducers or for connecting instruments with differing Lemo series interfaces.

Applications:

• Connecting UT Instruments to Transducers: Used to link single-element ultrasonic transducers with a Lemo 1 connector to ultrasonic flaw detectors or thickness gauges equipped with a Lemo 00 connector.

• Interconnecting UT Equipment: Can be used to connect various pieces of ultrasonic testing equipment that utilize Lemo 00 and Lemo 1 series connectors.

• General Ultrasonic Non-Destructive Testing (NDT): Suitable for a broad range of ultrasonic testing applications where compatibility between Lemo 00 and Lemo 1 connectors is required.

Importance:

• Facilitates Equipment Interconnection: Provides a reliable and secure connection between ultrasonic instruments and transducers with differing Lemo series connectors.

• Ensures Efficient Signal Transmission: The RG174 cable is designed to transmit ultrasonic signals effectively, minimizing signal loss.

• Offers Flexibility and Durability: The flexibility of the RG174 cable allows for ease of use in various inspection setups, while the Lemo connectors provide a secure and durable connection.

• Common Industry Connectors: Lemo 00 and Lemo 1 series connectors are widely used in the non-destructive testing field, ensuring broad compatibility with various equipment.
