NM01CAT1

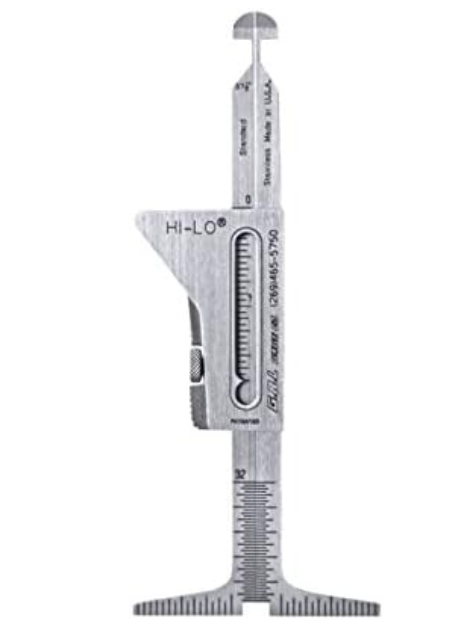

The G.A.L. Gage Hi-Lo Welding Gauge is a patented, high-quality inspection tool crafted from durable stainless steel. This essential gauge is designed for accurate and efficient measurement of internal misalignment during pipe fit-up, both before and after tack welding. By precisely measuring this critical alignment, the Hi-Lo gauge helps to significantly reduce radiographic rejects, saving time and resources in welding projects.

This versatile gauge features clear measurement scales, typically offering both inches on one side and metric on the opposite side, providing flexibility for various project requirements. Its design allows for easy and precise readings of internal mismatch.

Key Features:

• Patented Design: A unique and effective tool for measuring internal misalignment.

• Stainless Steel Construction: Ensures durability, longevity, and resistance to corrosion in demanding welding environments.

• Measures Internal Misalignment: Accurately determines the high-low of pipe ends before and after tacking.

• Reduces Radiographic Rejects: Proper fit-up measurement helps minimize costly rework due to misalignment.

• Dual Scale (Inch & Metric): Offers versatility for use in projects with different unit standards.

• Durable and Reliable: Built to withstand the rigors of welding inspection.

Benefits:

• Improved Weld Quality: Accurate fit-up leads to higher quality and more consistent welds.

• Cost Savings: Reduces the number of rejected welds requiring rework.

• Increased Efficiency: Speeds up the inspection process by providing quick and reliable measurements.

• Versatile Application: Suitable for a wide range of pipe welding projects.

• Long-Lasting Performance: Stainless steel construction ensures years of reliable use.

Applications:

• Pipe welding fit-up and alignment.

• Welding inspection in various industries, including pipeline construction, fabrication shops, and pressure vessel manufacturing.

• Quality control in welding processes to ensure adherence to specifications.

• Training and education of welding personnel.
