NM01T40232855

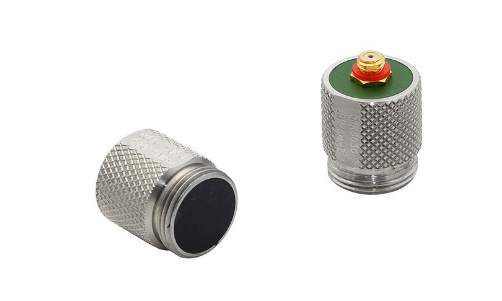

The Dakota Ultrasonics Single Element Contact Transducer is a compact, high-resolution probe designed for precise ultrasonic testing in demanding applications. Featuring a 1/4 inch (0.250") diameter active element and operating at a frequency of 5 MHz, this transducer delivers excellent sensitivity for detecting small discontinuities and accurately measuring thin materials.

The Microdot connector ensures a secure and reliable signal transmission to your Dakota Ultrasonics instrument. The side cable entry offers a practical low-profile configuration for use in restricted spaces. The "Single Finger Tip" designation highlights its small, ergonomic design, allowing for easy manipulation and precise positioning during inspections, particularly on small components and complex geometries. The "W/RES" likely indicates that this transducer has impedance matching for optimal performance with compatible Dakota Ultrasonics instruments.

Key Features:

• Single Element Contact Probe: Standard design for direct contact ultrasonic testing.

• Frequency: 5 MHz - Provides high resolution for detecting small flaws and measuring thin materials.

• Diameter: 1/4 inch (0.250") - Compact size for localized measurements and access to tight spaces.

• Connector: Microdot - Ensures a secure and reliable connection to ultrasonic instruments.

• Entry Side: Side cable exit for a low-profile configuration.

• Single Finger Tip Design: Small, ergonomic housing for easy manipulation.

• W/RES: Indicates impedance matching for optimal performance.

• Manufacturer: Dakota Ultrasonics - A trusted name in ultrasonic testing equipment.

Benefits:

• High Resolution Imaging: The 5 MHz frequency allows for the detection of minute discontinuities.

• Precise Measurement: Ideal for accurate thickness gauging of thin materials.

• Excellent for Confined Spaces: The small 1/4" diameter and finger-tip design allow access to tight areas.

• Ergonomic Handling: The single finger tip design ensures comfortable and precise probe manipulation.

• Reliable Connection: The Microdot connector provides a secure and noise-free signal.

• Optimized Performance: Impedance matching ensures efficient energy transfer with compatible instruments.

Applications:

• Detailed inspection of small components.

• High-resolution thickness measurement of thin-walled materials.

• Detection of near-surface flaws in various materials.

• Inspection of parts with complex geometries and limited access.

• Applications requiring precise and localized ultrasonic testing.
