NM01MCCAUT003

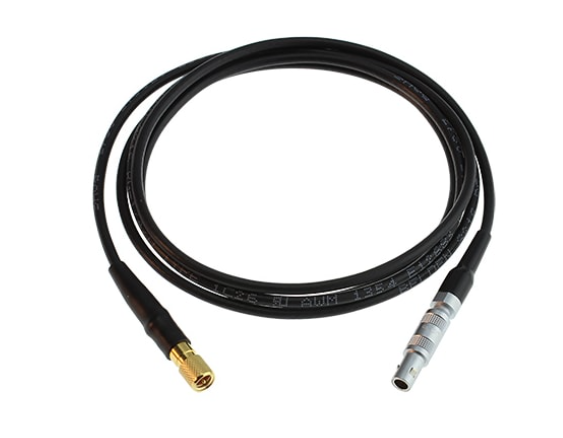

The UT Cable Lemo 00 to Microdot is a high-quality interconnect designed for seamless integration between ultrasonic transducers and testing instruments. Featuring a LEMO 00 connector on one end and a Microdot connector (typically 10-32 UNF) on the other, this cable provides a secure and reliable connection for accurate ultrasonic signal transmission.

Constructed with flexible RG174 coaxial cable, this 2-meter (approximately 6.56 feet) lead offers excellent maneuverability during inspections without compromising signal integrity. The LEMO 00 connector is renowned for its secure locking mechanism, ensuring a stable connection to your instrument, while the Microdot connector is a widely adopted standard for many compact ultrasonic transducers, particularly single element probes.

This cable is an essential accessory for any ultrasonic testing setup utilizing instruments with LEMO 00 connectors and transducers with Microdot connectors. It facilitates efficient and dependable data transfer, contributing to the accuracy and reliability of your non-destructive testing procedures.

Key Selling Points:

• LEMO 00 to Microdot Interface: Specifically designed for connecting instruments with LEMO 00 ports to transducers with Microdot connectors.

• Flexible RG174 Coaxial Cable: Enables ease of handling and routing during inspections.

• Optimal 2-Meter Length: Provides ample reach for various testing configurations.

• Reliable Signal Transmission: Ensures accurate data transfer for dependable results.

• Durable Construction for NDT Environments: Built to withstand typical usage in ultrasonic testing.

• Secure and Stable Connections: LEMO 00 and Microdot connectors ensure a firm and reliable link.

Benefits:

• Guarantees Compatibility: Provides a direct and secure connection between dissimilar connector types.

• Enhances User Comfort: The flexible cable allows for comfortable and unrestricted movement.

• Offers Versatile Reach: The 2-meter length accommodates a wide range of inspection scenarios.

• Maintains Signal Integrity: High-quality RG174 cable ensures efficient data transfer.

• Provides Long-Term Reliability: Durable construction withstands the demands of NDT applications.

Applications:

This UT cable is commonly used to connect:

• Single element contact transducers with Microdot connectors to ultrasonic flaw detectors or thickness gauges with LEMO 00 connectors.

• Angle beam transducers with Microdot connectors to UT instruments equipped with LEMO 00 ports.

• Various other ultrasonic transducers featuring Microdot connectors to compatible instruments utilizing LEMO 00 connections.

The UT Cable Lemo 00 to Microdot is a crucial component for establishing a reliable and efficient ultrasonic testing system, ensuring seamless communication between your transducer and instrument for accurate and dependable inspections.
