NM01MAP252570

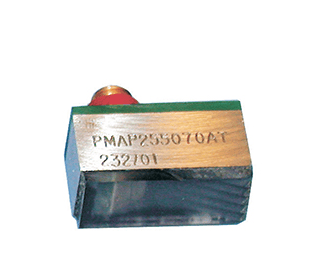

MINIATURE ANGLE BEAM POTTED ( MAP ), .250” DIA. (8MM X 9MM), 2.25 MHz, 70 Degree, Dakota NDT
The Dakota NDT Miniature Angle Beam Potted (MAP) transducer is a compact and robust ultrasonic solution specifically engineered for angle beam inspections in challenging, space-restricted environments and on components with intricate geometries. This transducer features a small .250” diameter (approximately 8mm x 9mm effective area) and operates at a versatile 2.25 MHz center frequency, providing an excellent balance between penetration capability and flaw resolution across a variety of materials. Its fixed 70-degree angle (in steel) is ideal for the effective detection and characterization of discontinuities oriented at this specific inclination relative to the inspection surface.
The "potted" design signifies a rugged, encapsulated housing that provides exceptional protection to the transducer element, ensuring enhanced durability and reliable performance in demanding industrial settings. This miniature angle beam probe is perfectly suited for detailed weld examinations, as well as the inspection of tubes, pipes, and other smaller components where physical access is limited.
Key Selling Points:
Ultra-Compact Form Factor: Enables access to highly confined inspection areas and complex contours.
Precise 70-Degree Angle Beam: Offers a steep refracted angle specifically designed for detecting and characterizing flaws with particular orientations.
Versatile 2.25 MHz Frequency: Provides an optimal balance of penetration and resolution for a wide range of materials and applications.
Small .250” Diameter Element: Delivers a focused ultrasonic beam for accurate and localized examinations.
Rugged Potted Construction: Enhances durability and provides superior protection in harsh operating environments.
Reliable Performance by Dakota NDT: A trusted name in ultrasonic testing transducers.
Benefits:
Effective Detection of Steeply Angled Flaws: Specifically designed to identify discontinuities that may be challenging to detect with other beam angles.
Superior Access in Tight Spaces: The miniature dimensions allow for inspections in previously inaccessible or difficult-to-reach areas.
Broad Application Versatility: Suitable for a wide array of materials and diverse inspection tasks.
Durable and Long-Lasting Performance: The robust potted construction ensures reliable operation in demanding conditions.
Applications:
This miniature angle beam potted transducer is commonly utilized for:
Detailed and precise weld inspection in extremely restricted access locations.
Critical flaw detection in close proximity to tight corners and intricate structural details.
Comprehensive inspection of complex geometric components requiring a steep 70-degree beam angle.
Applications demanding high resolution ultrasonic examination in confined spaces using steep angled beam techniques.
The Dakota NDT Miniature Angle Beam Potted (MAP) transducer provides a powerful and reliable solution for angle beam inspections in challenging environments, offering exceptional access and performance for critical flaw detection.
