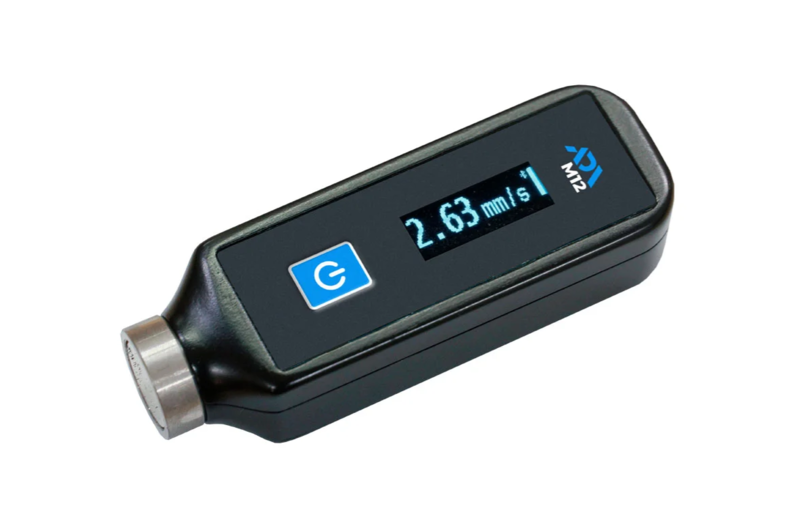

ADELIX ADL-M12 Miniature Vibration Meter
Vibration Velocity | Acceleration | Displacement | Magnetic Mounting | USB Type-C
SKU: ADL-M12 | NOMO SKU: NM01ADLM12
A compact portable vibration meter designed for fast condition monitoring and machinery diagnostics, measuring vibration velocity, acceleration and displacement while supporting bearing-condition assessment by peak factor.

| 0.01–200 mm/s RMS velocity | 0.1–200 m/s² peak acceleration | 2–2000 µm Displacement | 10–1000 Hz Frequency range |
Overview
The ADELIX ADL-M12 Miniature Vibration Meter is a compact diagnostic instrument designed for rapid assessment of the vibration condition of industrial machinery and rotating equipment.
Despite its small size, the ADL-M12 measures three important vibration parameters: RMS vibration velocity, peak vibration acceleration and peak-to-peak vibration displacement.
The instrument can also assist with rolling-bearing diagnostics using peak factor, helping maintenance personnel identify developing mechanical problems before they lead to unexpected equipment failure.
A magnetic measurement surface allows the instrument to be attached directly to machinery, reducing operator influence during measurement. The ADL-M12 can also be mounted using an M5 stud.
Its compact housing, integrated rechargeable battery, bright OLED display and simple one-button operation make it well suited to routine plant inspections and condition-monitoring routes.
Key Features
![]() | Three vibration parametersThe ADL-M12 measures vibration velocity, acceleration and displacement, providing multiple indicators of machinery condition from a single compact instrument. |
Vibration velocity measurementRMS vibration velocity provides a practical overall indicator of machine vibration and is commonly used for routine condition monitoring of rotating equipment. | RMS Velocity 0.01–200 mm/s |
| Peak Acceleration 0.1–200 m/s² | Acceleration measurementPeak vibration acceleration helps identify higher-frequency vibration components and impact behavior associated with developing mechanical or bearing problems. |
Vibration displacementPeak-to-peak displacement measurement provides another useful parameter for evaluating relatively low-frequency mechanical movement and machine vibration behavior. | Displacement 2–2000 µm |
| Mounting Magnetic / M5 | Stable measurement mountingMagnetic attachment allows the sensor to remain firmly positioned on ferromagnetic machinery, helping reduce variations caused by operator pressure and positioning. |
Rolling-bearing diagnosticsPeak-factor analysis provides an additional diagnostic tool for assessing the condition of rolling bearings during routine machinery maintenance. | Bearing Analysis Peak Factor |
| Display 0.91" OLED | Bright compact displayThe integrated OLED display provides clear measurement values while keeping the instrument compact enough for confined machinery locations. |
Rechargeable USB-C powerThe built-in 3.7 V lithium-polymer battery can be recharged through the USB Type-C connection, simplifying daily field use. | Battery 3.7 V / 370 mAh USB Type-C |
Built for Machinery Condition Monitoring
Preventive maintenance
Routine vibration measurements can help identify changes in machine behavior before they develop into more serious mechanical failures.
Rotating equipment monitoring
Suitable for routine inspection of pumps, motors, fans, reducers, generators, turbines and other rotating machinery.
Hard-to-reach measurement points
The miniature 30 × 28 × 90 mm housing makes the ADL-M12 convenient for measurements where larger vibration instruments may be difficult to position.
Optional wireless monitoring
Optional Bluetooth functionality supports transmission of measurement data to compatible external devices and software when equipped with the wireless configuration.
Specifications
| General | |
| Manufacturer | ADELIX |
|---|---|
| Model | ADL-M12 |
| NOMO SKU | NM01ADLM12 |
| Product Type | Miniature portable vibration meter |
| Vibration Measurement | |
| RMS Vibration Velocity | 0.01–200 mm/s |
| Peak Vibration Acceleration | 0.1–200 m/s² |
| Peak-to-Peak Vibration Displacement | 2–2000 µm |
| Operating Frequency Range | 10–1000 Hz |
| Measurement Error | ±5% |
| Bearing Diagnostics | Peak-factor assessment of rolling bearings |
| Measurement Resolution | Up to 0.01 |
| Display & Connectivity | |
| Display | 0.91" OLED |
| Wireless Connectivity | Bluetooth LE — optional configuration |
| Data Transmission | Real-time transmission to compatible external device when wireless option is installed |
| Power | |
| Battery | Rechargeable Li-Pol, 3.7 V / 370 mAh |
| Battery Runtime | Approx. 4–8 hours depending on use |
| Charging Connector | USB Type-C |
| Charging Time | Approx. 1.5 hours |
| Physical & Environmental | |
| Dimensions | 30 × 28 × 90 mm (1.18 × 1.10 × 3.54 in), including magnetic fastening |
| Device Weight | Approx. 70 g (0.15 lb) |
| Sensor Protection | IP54 |
| Operating Temperature | -10°C to +55°C |
| Maximum Relative Humidity | 85% |
| Mounting | Magnetic surface or M5 stud |
| Shipping | |
| Packed Box Dimensions (Estimated) | 10 × 8 × 4 in (254 × 203 × 102 mm) |
| Gross Shipping Weight (Estimated) | Approx. 2.0 lb (0.91 kg), including instrument, charger, cable, documentation and protective packaging |
What's Included
| ADL-M12 Vibrometer | 1 |
| Charger | 1 |
| Charging Cable | 1 |
| Operating Manual / Passport | 1 |
| Protective Package / Case | 1 |
Applications
| ✓ Motors and electric drives | ✓ Pumps and compressors |
| ✓ Fans and blowers | ✓ Gearboxes and reducers |
| ✓ Rolling bearings | ✓ Turbines and generators |
| ✓ Preventive maintenance | ✓ Machinery condition monitoring |
| ✓ Maintenance routes | ✓ Field diagnostics |
About ADELIX
ADELIX is an international manufacturer headquartered in Ankara, Türkiye, specializing in equipment for mechanical testing, chemical analysis, non-destructive testing and machinery diagnostics.
Its product portfolio includes vibration meters and analyzers, ultrasonic thickness gauges, hardness testers, coating-thickness instruments and other industrial diagnostic solutions.
