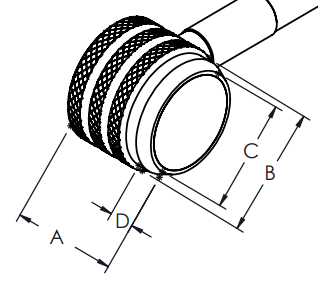

NM01DVF024

The NDT Systems UT Dual Element Potted Fingertip transducer is a compact and robust ultrasonic transducer featuring a dual element design, operating at a frequency of 2.25 MHz with a crystal diameter of 0.5 inches. The dual element configuration utilizes separate transmitting and receiving crystals, which significantly improves performance in specific applications, particularly on irregular, rough, or corroded surfaces, and enhances near-surface resolution.

The "potted" construction indicates that the internal components of the transducer are fully encapsulated within a durable material. This design provides exceptional protection against moisture, dust, and other harsh environmental factors, ensuring reliable and consistent performance in demanding industrial inspection settings.

The "fingertip" designation refers to the small, ergonomic housing of the transducer. This compact design allows for easy and comfortable handling, enabling inspectors to access and effectively inspect areas with limited space or complex geometries. The 0.5-inch crystal diameter provides a focused sound beam, offering a good balance of sensitivity and penetration for a variety of materials and flaw detection tasks.

Key Features:

• Dual Element: Employs separate transmitting and receiving crystals for enhanced performance on challenging surfaces and improved near-surface resolution.

• Frequency: 2.25 MHz: Offers a good balance of penetration and sensitivity for general-purpose ultrasonic testing.

• Crystal Diameter: 0.5 inches: Provides a focused sound beam suitable for a range of inspection tasks.

• Potted Construction: Encapsulated design ensures durability and protection against environmental factors.

• Fingertip Design: Compact and ergonomic housing for easy handling and access to confined spaces.

• Contact Transducer: Designed for direct contact with the test surface using an appropriate ultrasonic couplant.

• Compatibility: Intended for use with compatible ultrasonic flaw detectors and thickness gauges.

Benefits:

• Improved Performance on Challenging Surfaces: Dual element technology enhances coupling and signal reception on irregular, rough, or corroded materials.

• Enhanced Near-Surface Resolution: The dual element design provides better detection of flaws close to the surface.

• Durable and Reliable: The potted construction ensures longevity and consistent performance in demanding environments.

• Enhanced Access: The compact fingertip design allows inspection in areas with limited space.

• Easy to Use: The ergonomic design ensures comfortable and controlled manipulation during manual inspections.

Applications:

• General-purpose ultrasonic testing on various materials like metals, plastics, and composites.

• Inspection of irregular, rough, or corroded surfaces.

• Thickness gauging, particularly on materials where good near-surface resolution is beneficial.

• Flaw detection in welds and other critical components.

• Inspections in areas with restricted access or complex geometries.
