NM01UEE930

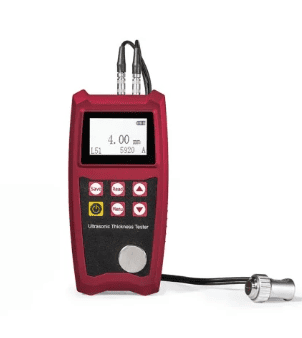

The UEE930 is a high-quality and precise ultrasonic thickness tester designed for non-destructive measurement of material thickness. It offers excellent resolution and accuracy, making it suitable for a wide range of industrial applications.

The UEE930 utilizes ultrasonic waves to measure the thickness of various materials, including metals, plastics, ceramics, glass, and other ultrasonic wave-conducting materials. It provides a non-destructive method for quality control, material inspection, and assessing corrosion or erosion. The device is portable and easy to use, featuring a clear digital display that shows readings in either millimeters (mm) or inches.

Key Features:

• High Accuracy and Resolution: Offers a resolution of 0.01 mm or 0.001 inch, ensuring precise thickness measurements. The accuracy is typically ±(0.5%n + 0.04)mm, where 'n' represents the measured thickness in mm.

• Wide Measurement Range: The measuring range depends on the probe used and the material being tested, but it generally covers a significant thickness spectrum (e.g., 0.75 to 300 mm in steel with standard probes).

• Dual Probe Capability: Includes two probes in the standard package, likely a standard general-purpose probe and potentially a specialized probe for specific applications (e.g., high-temperature or thin materials). This enhances the versatility of the instrument.

• Adjustable Sound Velocity: Allows manual adjustment of the sound velocity to optimize accuracy for different materials. The sound velocity range is typically 1000 to 9999 m/s.

• V-Path Compensation: Features V-path compensation for accurate measurements when using dual-element probes.

• Data Storage: Offers the capability to store a significant number of measurement readings for later review and analysis.

• PC Software Connectivity: Comes with software for PC connection via USB, enabling data transmission, storage, analysis, and report generation. This is crucial for documentation and quality control processes.

• Unit Selection: Users can easily switch between millimeter (mm) and inch units for their convenience.

• Backlight Display: Features a backlit LCD for clear readings in various lighting conditions.

• Battery Operation: Typically powered by standard AA batteries for portability and ease of use in the field.

• Durable Construction: Designed for industrial use with a robust housing to withstand demanding environments.

• 3-Year Warranty: The included 3-year warranty indicates the manufacturer's confidence in the instrument's quality and reliability.

• LEEB: While "LEEB" is mentioned, it's important to clarify that this is primarily an ultrasonic thickness tester. The mention of "LEEB" might indicate the brand or manufacturer, but it doesn't imply that this device performs Leeb hardness testing.

Technical Parameters (Typical):

• Measuring Range: Varies depending on the probe and material (e.g., 0.75 - 300 mm in steel)

• Accuracy: ±(0.5%n + 0.04)mm

• Resolution: 0.01 mm / 0.001 inch

• Sound Velocity Range: 1000 - 9999 m/s

• Memory: Typically stores hundreds or thousands of readings

• Units: mm / inch selectable

• Display: Backlit LCD

• Power Supply: Typically 2 x AA batteries

• Operating Temperature: Usually -10°C to +60°C

• Dimensions: Approximately 163mm x 78mm x 33mm

• Weight (Main Unit): Approximately 240g

Standard Configuration:

The standard package likely includes:

• UEE930 Main Unit

• Standard Probes (2 units)

• Coupling Agent

• USB Cable

• Software (CD or pendrive)

• Calibration Block

• Carrying Case

• Operation Manual

• Certificate of Conformity
