NM01ND2000A

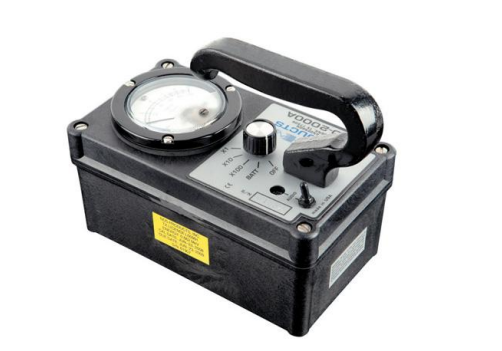

The NDS PRODUCT ND-2000A High Range Gamma/X-Ray Survey Meter is a rugged and reliable instrument designed for accurate measurement of gamma and X-ray radiation. This specific model features three distinct measurement ranges: 0-1000 mR/hr, 0-100 mR/hr, and 0-10 mR/hr, with a dual scale display providing readings in both milliRoentgens per hour (mR/hr) and microSieverts per hour (µSv/hr).
A key feature of the ND-2000A is its integrated audio feedback, providing an audible indication of the radiation level. This "click-style" audio allows users to monitor radiation fields without constantly looking at the display.
Built for demanding environments, the ND-2000A typically features a durable, dust-proof, and often water-resistant casing (e.g., nylon-reinforced polyester) designed to withstand challenging field conditions. It generally operates on standard batteries (e.g., two "D" cells) offering extended operational time.
Key Features:
Three Measurement Ranges: 0-1000 mR/hr, 0-100 mR/hr, 0-10 mR/hr (or equivalent in µSv/hr).
Dual Scale Display: Simultaneous readings in mR/hr and µSv/hr.
Integrated Audio Feedback: Provides audible indication of radiation levels.
Gamma and X-Ray Detection: Sensitive to gamma and X-ray radiation within a specific energy range (e.g., 80-2000 KeV) with reasonable accuracy (e.g., ±20%).
Durable Construction: Rugged housing designed for field use.
Long Battery Life: Extended operation on standard batteries.
Benefits:
Versatile Radiation Monitoring: Suitable for a wide range of gamma and X-ray detection needs, including higher levels.
Easy to Interpret Readings: Dual scale display provides flexibility and convenience.
Enhanced Situational Awareness: Audio feedback allows for hands-free monitoring.
Reliable Performance: Rugged construction ensures durability in challenging environments.
Long Operational Time: Extended battery life minimizes downtime.
Ensures Safety and Compliance: Provides the necessary tools for monitoring radiation levels and protecting personnel.
Applications:
Radiography safety and surveys in industrial settings.
Environmental radiation monitoring.
Emergency response and hazardous materials handling.
Nuclear medicine and health physics applications.
Calibration and maintenance of radiation detection equipment.
Technical Details:
Rugged two piece nylon reinforced case and Handle.
LCD Display.
Display Available in mR/hr and uSv/hr
Gamma and X-Ray From 80-2000 KeV within 20%.
Drop Tested from one meter in excess of twenty five times with no damage or failures.
Operating Temperature: -20 to 50 °C (-4 to 122 °F), Humidity: Non-Condensing 95%.
Operates on two "D" Cell batteries providing over 200 Hours of continuous use with Alkaline Batteries.
Regulated High and Low Voltages
Individual Calibration Potentiometers for each range.
Saturation in excess of 1000R/hr when calibrated and maintained properly.
Halogen Quenched, Energy Compensated GM Tube, Effective Length and Diameter: 0.625" x 0.194", Wall Thickness 90 mg/cm²
4.4" W x 7.75" L x 6.25" H, including handle.
3lbs, 13ozs/1.73 kgs with batteries.
Three Ranges 0-1000, 0-100, 0-10 mR/hr or 0-10,000, 0-1000, 0-100 uSv/hr.
