NM01FG3108

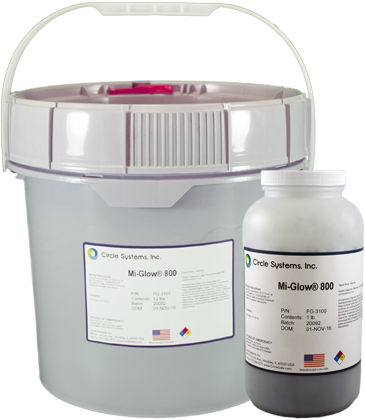

Circle Systems Mi-Glow® 800 - Fluorescent Yellow-Green Magnetic Particle Powder (500 Gram Jar)

The Circle Systems Mi-Glow® 800 is a high-sensitivity fluorescent yellow-green magnetic particle powder concentrate, meticulously engineered for the wet method of Magnetic Particle Inspection (MPI). As a core component in the NDT process for ferrous materials, Mi-Glow® 800 is mixed with a suitable carrier fluid (water or oil-based) to form a suspension, enabling inspectors to reliably locate very fine surface and shallow sub-surface discontinuities under ultraviolet (UV-A) light.

Key Features & Benefits:

• High Sensitivity Fluorescent Particles: Mi-Glow® 800 is renowned for its exceptional sensitivity, designed to detect extremely fine and tight discontinuities such as fatigue cracks, grinding cracks, inclusions, and seams. Its brilliant yellow-green fluorescence provides high contrast against the test surface under UV-A light, ensuring clear and easy identification of indications.

• Wet Method Application: Supplied as a fine powder, it is intended to be suspended in a liquid carrier (either water with wetting agents/corrosion inhibitors, or a high-flash naphtha-based oil) to form a stable and uniform suspension. This method allows for efficient coverage of complex geometries and provides excellent particle mobility.

• Optimized Particle Size Distribution: Contains a carefully controlled blend of magnetic particles with an optimal size distribution, ensuring high mobility and strong retention at leakages of magnetic flux fields, maximizing defect detection.

• Versatile Material Compatibility: Suitable for inspecting a wide range of ferromagnetic materials, including various steels, cast irons, and their alloys.

• Consistent Performance: Manufactured by Circle Systems, a trusted leader in magnetic particle inspection products, ensuring consistent quality, batch-to-batch uniformity, and reliable performance in critical NDT applications.

• Economical Concentrated Form: The powdered concentrate allows users to mix the desired concentration of magnetic particles for their specific application, offering cost-effectiveness and flexibility.

• Industry Compliance: Meets or exceeds stringent industry specifications for magnetic particle inspection, including:

  • ASTM E1444

  • ASME Boiler and Pressure Vessel Code, Section V

  • MIL-STD-2132D

  • AMS 3044 (for wet method fluorescent magnetic particles)

Specifications:

• Manufacturer: Circle Systems

• Product Name: Mi-Glow® 800

• Form: Powdered concentrate

• Color (Dry): Dark brown/black

• Color (Fluorescent): Fluorescent Yellow-Green

• Container Size: 500 Gram Jar

• Method: Wet Method Fluorescent Magnetic Particle Inspection

• Carrier Fluid Compatibility: Water-based or Oil-based carriers (e.g., CircleSol M, Aqua-Glo 790, or specified carriers)

• Recommended Concentration: Varies based on application and method (refer to manufacturer's instructions for mixing ratios).

• UV-A Light Requirement: Requires an adequate UV-A (blacklight) source for inspection.

Typical Applications:

• Detection of surface and shallow sub-surface cracks, laps, seams, inclusions, and other discontinuities.

• Inspection of welds, castings, forgings, machined components, and other ferrous metal parts.

• Aerospace, automotive, oil & gas, power generation, marine, and general manufacturing industries.

• Quality control and in-service inspections where high sensitivity is paramount.
