he Labino UVG5 2.0 Midlight (With White light) - Full Kit is a hands-free UV LED headlight designed for various inspection applications, particularly in Non-Destructive Testing (NDT) like Magnetic Particle Inspection (MPI) and Penetrant Testing (PT). The "Midlight" designation refers to its beam intensity and coverage area, offering a balance between the focused "Spotlight" and the wider "Floodlight" versions in the UVG5 2.0 series.
Here's a breakdown of what the "Full Kit" typically includes and its key features:

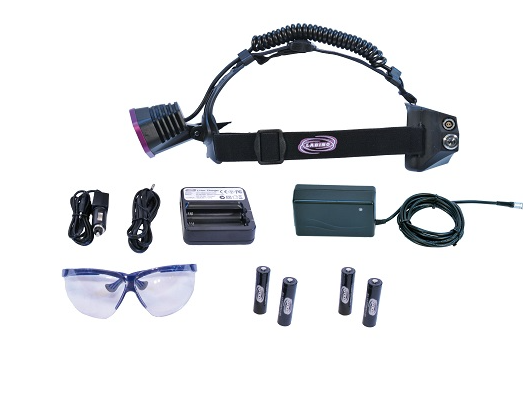

Typical Contents of the Full Kit:
1 x Labino UVG5 2.0 Midlight Headlamp (With White Light): The main unit featuring a high-intensity UV LED emitting at approximately 365 nm and one or more white light LEDs for general illumination. The Midlight version provides a moderate UV intensity and a beam size suitable for general inspection tasks.

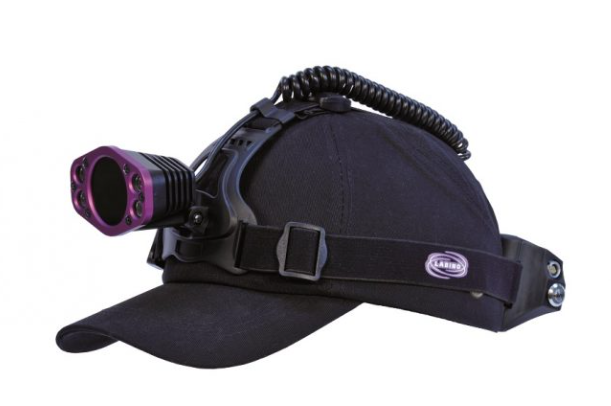

1 x Bump Cap (Cap): A lightweight protective headwear to which the UVG5 2.0 can be easily and securely attached, allowing for comfortable, hands-free operation. Universal clips ensure compatibility with most standard bump caps or hard hats.
1 x UV Blocking Glasses: Essential personal protective equipment (PPE) to shield the user's eyes from harmful UV radiation.
1 x Outlet Charger: A power supply for recharging the batteries from a standard wall socket.
1 x Car Charger: A charging adapter that can be used in a vehicle's cigarette lighter socket, providing convenient charging on the go.
1 x PSU Charger (Power Supply Unit Charger): This might be an additional type of charger or could refer to the main outlet charger. Some descriptions mention an external charger for wall outlets as well.
4 x Batteries: Providing ample power for extended inspection periods. The UVG5 2.0 series boasts a good battery run time (typically around 8 hours for the Midlight UV and potentially less for continuous white light use), and having extra batteries ensures minimal downtime.
1 x Manufacturer's Test Report (where applicable): Documentation confirming the lamp's performance and compliance with relevant standards.
Key Features of the Labino UVG5 2.0 Midlight (With White Light):
UV LED Technology: Utilizes a high-quality UV LED that peaks at approximately 365 nm, the standard for many NDT applications. The LED has a long lifespan (estimated around 30,000 hours).
Midlight Beam: Offers a balance of UV intensity and beam coverage, typically providing around 9,000 μW/cm² at 15 inches (38 cm) with a beam diameter of approximately 3.75 inches (9.5 cm) where the intensity is above 1000 μW/cm².
Integrated White Light: Features one or more white light LEDs with different modes (e.g., a strong "search" light and a visual inspection light) for general illumination in dark areas or for pre/post-inspection tasks.
White Light Block Filter: Incorporates a high-quality white light block filter that is not susceptible to solarization, ensuring minimal visible light emission during UV inspection, which is crucial for optimal fluorescence detection.
Adjustable Lamp Angle: The lamp head can be adjusted to various angles to suit the user's needs and the inspection geometry.
Hands-Free Operation: Designed to be mounted on a bump cap or hard hat, freeing the inspector's hands for manipulation of parts or other tools.
Durable and Robust: Built with an industrial design to withstand demanding inspection environments and is often penetrant resistant (IP68 waterproof rating in some models).
Constant Intensity: Equipped with a current regulator to maintain a consistent UV intensity even as the battery discharges.
Battery Management: Features rechargeable lithium-ion batteries that can be charged via various sources (wall outlet, car). Some models have an acoustic battery indicator to signal remaining battery life.
Compliance with Standards: Select models have been tested to comply with major NDT standards such as ASTM E3022-18 and ISO 3059-12, and may also meet requirements from primes like Rolls-Royce and Airbus.
Warranty: Labino products typically come with a warranty (often 3 years on parts).
Applications:
The Labino UVG5 2.0 Midlight (With White light) - Full Kit is ideal for a wide range of fluorescence-based inspections, including:
Fluorescent Magnetic Particle Inspection (FMPI)
Fluorescent Penetrant Testing (FPT)
Leak Detection using fluorescent tracers
Forensics
Art Restoration and Verification
Security applications
