NM013M300SSMCTR
Out of stock
Tags:

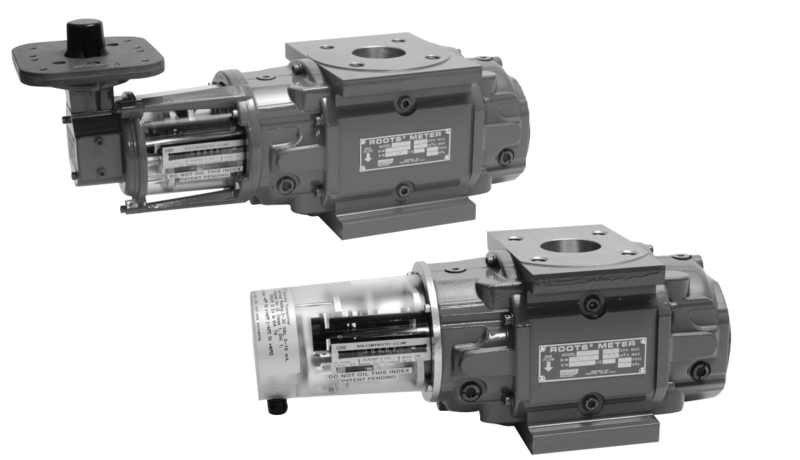

Dresser 3M300-SSM-CTR 2” ANSI 300 F/F Flanged Connections B3 CTR Mechanical Index
$4,279.00
Product Details
Dresser meters are suitable for handling most types of clean, dry, common gases at either constant or varying flow rates. The meter is not suitable for handling liquids. Measurement accuracy and life expectancy may be affected by dirt or other types of foreign material in the gas stream. For a list of acceptable dry gases, consult factory.
Meters of standard construction are not suitable for handling acetylene, biogas or sewage gas. Specially constructed meters compatible with these and other gases are available. Please contact your Dresser meter supplier for details and to request publication TS:SSM.
Technical Details:
- Frequency: 133.33 Hz
- Volume per Pulse: 0.006250 CF
- Pulses per Volume: 160 CF
- Flow Rate: 3.000 ACFH
- Bolt Diameter: 5/8
- Torque Lubricated: 55
- Torque Lubricated: 60
