VEO3 32:128PR/2UT:PR BNC - TFM Customer Kit Comprising, with TOFD Software & UT Studio USB Memory Stick, Batteries, Power Supply, Quick Start Guide, Guarantee Card, Screen Protector, Carry Strap, User Manual, Storm Case, 128 GB, Warranty Period: 2 years. SONATEST SKU: VEO3 32:128 BNC TFM
Choose Quantity
Sonatest Veo3 32:128PR / 2UT:PR BNC Customer Kit with TFM Software
SKU: VEO3 32:128 BNC TFM

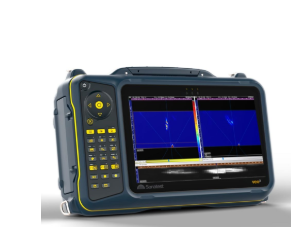

The top Veo3 configuration with TFM: a portable phased array, TFM, TOFD and conventional UT instrument with 32 active pulsers, 128 channels, a 10.4" touchscreen and 128 GB of storage, supplied as a complete field kit with TFM and TOFD software and a Storm case.
| 32:128PA pulser/receiver plus 2 UT | TFMSoftware included | 10.4"1024 × 600 touchscreen | 128 GBSSD storage |
The Sonatest Veo3 retains the best features of the established Veo line and adds a PCAP touch interface, user templates and TFM capability. Its real-time multi-scan and multi-technique architecture lets inspectors run phased array, TOFD and TFM views at the same time. They can keep working to their approved procedures while gaining the extra resolution and sizing performance of TFM.
This 32:128PR configuration is the most capable Veo3, firing up to 32 elements per focal law across 128 channels. The kit comes ready with TFM and TOFD software, UTstudio+ analysis software, batteries, power supply and a Storm transport case, so advanced weld inspection and defect characterization can start straight away. It's backed by a 2-year warranty.
See It in Action
▶ Watch on YouTube | More Veo3 tutorials
Key Features
 | TFM imaging includedWith TFM software in the kit, the Veo3 generates up to six live TFM scans from multiple FMC sources, with images of up to 500,000 pixels at up to 100 pixels per mm. Full Matrix Capture data can be recorded for detailed analysis and comparison with previous inspections to track flaw and corrosion growth. |
TFMi intermodal imagingDeveloped with Holloway NDT, TFMi combines up to 4 live TFM modes in one image. It gives high-precision height assessment and better shape accuracy than conventional phased array, making defect characterization in welds far easier. |  |
 | 32 active pulsers, 128 channelsWith 32 elements firing per focal law, the Veo3 32:128 forms larger apertures for tighter focusing, stronger penetration and better resolution on thick sections and attenuative materials. Its 128 channels can drive a pair of 64-element probes on either side of a weld in a single pass, and support up to 8 simultaneous scans. |
Superior digital technologyA 32-channel PA beamformer with enhanced digital signal processing delivers exceptional signal-to-noise ratio. A 64-bit Linux system with a fast 128 GB SSD records huge acquisitions, including full FMC data, in a single file. |  |
Built for the Field
Intuitive touch workflow
Application-driven menus, a PCAP touchscreen and user templates make setup second nature. Wizards for sound velocity, wedge delay, TCG, DAC, TOFD setup and encoder calibration come standard, and a 3D inspection plan shows where probes sit on the part.
TOFD included
Two conventional UT channels with a 400 V ActiveEdge pulser and 4 BNC connectors run TOFD and UT scans alongside phased array and TFM.
UTstudio+ analysis software
One UTstudio+ license is included to manage setups, analyze TFM, phased array and UT data, and build detailed reports. The free UTview viewer lets colleagues review results.
Remote control with Xpair
With Sonatest's Xpair software, the Veo3 can be controlled from a PC over a simple network connection. The Xpair Cloud option lets an expert anywhere in the world pilot the instrument remotely.
Rugged and field ready
The enclosure is designed for IP66, and hot-swappable batteries give about 6 hours of operation without shutting down.
Software options
The hardware is already at the top of the Veo3 range. Add phased array curved surface correction, CSV export, Xpair Cloud, or UTmap and Xpair PC licenses as your work requires.
Specifications
| General | |
| Manufacturer | Sonatest |
|---|---|
| Model | Veo3 |
| Configuration | 32:128PR phased array / 2UT:PR, BNC |
| SKU | VEO3 32:128 BNC TFM |
| Software included | TFM, TOFD, UTstudio+ |
| Connectors | I-PEX 128-channel (PA); 4 × BNC (UT) |
| Warranty | 2 years |
| Shipping dimensions (estimated) | 559 × 457 × 254 mm (22.0 × 18.0 × 10.0 in) |
| Shipping weight (estimated) | 8.2 kg (18 lb) |
| Phased Array | |
| Pulsers / receivers | 32:128 |
| Multi-scan | Up to 8 scans |
| Gain range | 80 dB |
| Sampling | 125 MHz at 12-bit (16-bit processing) |
| System bandwidth | 0.2 to 23 MHz |
| Max PRF | 50,000 Hz |
| Pulse voltage | 100 to 50 V, ActiveEdge |
| Focusing | Natural, or constant depth, path, offset or resolution |
| Scan resolution | S-scan up to 0.1°; L-scan 1 element, double resolution or custom element steps |
| Max PA beams | Up to 4,096 focal laws |
| Measurement tools | Extraction box, 4 gates per A-scan, TCG, DAC and Split DAC |
| TFM (Software Included) | |
| Scans | Up to 6 TFM scans and 1 FMC scan |
| Probe | Up to 64 elements |
| Image size and resolution | Up to 500,000 pixels; TFM and TFMi resolution down to 0.01 mm |
| TFMi | Up to 4 live TFM modes combined |
| Gain, sampling and bandwidth | 80 dB; 125 MHz at 12-bit (16-bit processing); 0.2 to 23 MHz |
| UT-TOFD | |
| Channels | 2 pulser/receivers (4 connectors); up to 2 scans (UT and TOFD) |
| Gain range | 100 dB |
| Sampling | 50, 100 or 200 MHz at 10-bit |
| System bandwidth | 0.2 to 18 MHz |
| Max PRF | 20,000 Hz |
| Pulse voltage | 400 to 100 V, ActiveEdge |
| Measurement tools | 4 gates per A-scan, TCG, DGS and Split DGS, DAC and Split DAC |
| System & Software | |
| Data storage | 128 GB SSD |
| Operating system | 64-bit Linux |
| Onboard tools | Live 3D scan plan, PDF auto-report, screen capture, PDF reader, integrated help |
| PC software | UTstudio+ (1 license included); UTview free viewer; UTmap and Xpair available |
| Software options | PA curved surface correction, CSV export, Xpair Cloud |
| Calibration standards | ISO 18563 (EN 16392) and EN 12668 |
| Display, Physical & Power | |
| Display | 10.4" wide, 1024 × 600 LCD, LED backlight 460 cd/m², projective capacitive touch panel |
| Remote display | WiFi, Ethernet or VGA |
| Dimensions | 115 × 220 × 335 mm (4.52 × 8.66 × 13.19 in) |
| Weight | 5.1 kg (11 lb) without battery; 460 g (1 lb) per battery |
| Operating time | 6 hours, hot-swappable batteries |
| Power input | AC 110 to 240 V, 50/60 Hz |
| Operating temperature | -10°C to 40°C (14°F to 104°F); storage -20°C to 60°C (-4°F to 140°F) |
| Environmental rating | Designed for IP66; MIL-STD-461G section 5.21 RS103 |
What's in the Box
 |
Contents can vary by package, so contact us to confirm what ships with your order. |
Complete your PAUT and TFM setup
Add Sonatest X-Series or DAAH phased array probes (up to 64 elements for TFM) with wedges. Use the IX128 to IX64:64 PA splitter (ADAP-006) to run two 64-element probes at once. TOFD probes and wedges with BNC cables, an encoded scanner or wheel probe, irrigation and calibration blocks complete the kit.
Applications
The Veo3 32:128 with TFM handles the most demanding inspection programs across oil and gas, power generation, aerospace and fabrication.
| ✓ TFM and TFMi defect characterization | ✓ Heavy-wall and thick-section welds |
| ✓ Multi-probe weld inspection | ✓ TOFD weld inspection and sizing |
| ✓ Crack detection and height sizing | ✓ Austenitic and attenuative materials |
| ✓ Corrosion mapping and growth tracking | ✓ Pipelines and pressure vessels |
Downloads
| ⬇ Product Brochure (PDF, 0.9 MB) | ⬇ Full Specifications (PDF, 0.1 MB) |
