NM01CEG01338AD0206

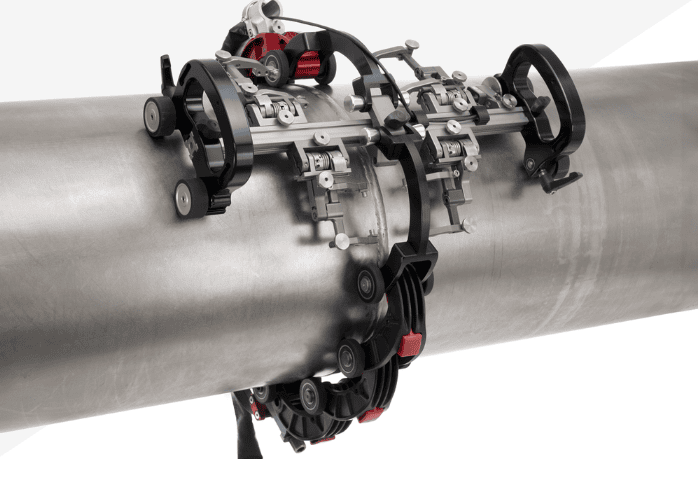

The JIREH ROTIX - 4 Probe Weld Frame Scanner is a versatile and robust manual chain scanner designed for encoded ultrasonic inspection of pipe welds. This scanner is engineered to accommodate up to four ultrasonic probes simultaneously, making it ideal for comprehensive weld examinations in a single pass.

Its adaptable chain system allows for quick and easy adjustment to inspect a wide range of pipe diameters, from 10.2 to 96.5 cm (4 to 38 inches). Integrated with a precise encoder featuring a VEO/Prisma connector style, the ROTIX provides accurate positional data for reliable defect mapping and sizing.

The scanner incorporates a user-friendly probe positioning system (PPS) for swift adjustments to probe spacing and centering over the weld. It features Primary Pivot Buttons (5.0 mm / 0.197 in) and Secondary Pivot Buttons (3.0 mm / 0.118 in), offering compatibility with various probe holders and wedges.

Stability and smooth operation are ensured by the double wheel chain design, which effectively straddles the weld. The urethane-coated wheels provide excellent traction and minimize slippage, even on vertical surfaces. A built-in brake system allows the scanner to be securely locked in position on the pipe. Ergonomic handles offer enhanced control during manual operation and serve as convenient attachment points for accessories. Constructed with durability in mind, the ROTIX is built to withstand demanding industrial environments.

Key Features:

• Accommodates Up to Four Probes: Enables comprehensive weld inspection with multiple techniques (e.g., PA, TOFD) in one scan.

• Wide Pipe Diameter Range: Adjustable chain system for inspecting pipes from 4 to 38 inches (10.2 to 96.5 cm).

• Precise Encoder Integration: Provides accurate positional data via a VEO/Prisma connector for reliable defect mapping.

• User-Friendly Probe Positioning System (PPS): Facilitates quick and easy probe adjustments.

• Versatile Probe Mounting: Compatible with various probe holders and wedges via primary and secondary pivot buttons.

• Stable Operation: Double wheel chain design ensures smooth and consistent scanning.

• Enhanced Traction: Urethane-coated wheels minimize slippage on various surfaces.

• Secure Positioning: Integrated brake system locks the scanner in place.

• Ergonomic Handling: Comfortable handles for ease of use and accessory mounting.

• Durable Construction: Built for reliable performance in industrial settings.

Applications:

• Circumferential weld inspection on pipes and tubes.

• Detection and characterization of weld defects using ultrasonic testing methods.

• Quality control during welding processes and in-service inspections.
