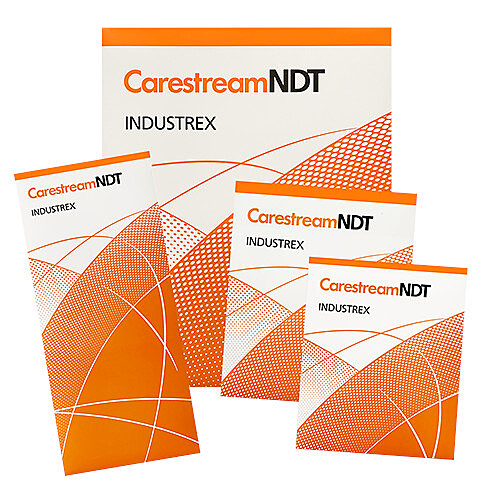

Carestream INDUSTREX Flex HR | High-Resolution Imaging Plate

Precision Digital Imaging for Critical NDT Applications

The INDUSTREX Flex HR Imaging Plate is engineered for NDT professionals who require the highest possible spatial resolution and image quality in a digital format. Designed specifically for use with Carestream’s computed radiography (CR) systems, the Flex HR plate is optimized for detecting minute defects like microscopic cracks, fine porosity, and localized corrosion. Its flexible design allows it to be wrapped around pipes or inserted into tight geometries, providing the versatility of traditional film with the speed and efficiency of digital technology.

Key Performance Features

• Ultra-High Resolution: The "HR" (High Resolution) designation ensures the plate captures fine-grained detail, meeting the stringent requirements of aerospace and nuclear inspection standards.

• Superior Flexibility: Unlike rigid Digital Radiography (DR) panels, the Flex HR plate can be curved to fit the contour of the part, making it the ideal choice for circumferential weld inspections on piping.

• High Signal-to-Noise Ratio (SNR): Advanced phosphor technology provides a wide dynamic range and excellent sensitivity, reducing the "noise" in digital images and making indications easier to interpret.

• Erasable & Reusable: These plates can be used thousands of times when handled correctly. After scanning, the plate is erased by the CR reader and is immediately ready for the next exposure.

• Efficiency & Productivity: Eliminates the need for chemical processing and darkrooms. Digital images are available for analysis within seconds of scanning.

Technical Specifications

Ideal Applications

• Aerospace: High-resolution inspection of engine components, turbine blades, and composite structures.

• Oil & Gas: Profile radiography and weld inspection of small to medium diameter piping.

• Power Generation: Precision imaging of boiler tubes and nuclear primary system components.

• Castings: Detection of micro-shrinkage and fine gas porosity in investment castings.

Care & Handling Best Practices

To maximize the lifespan and image quality of your Flex HR Imaging Plate:

• Use Protective Sleeves: Always use a light-tight flexible cassette or protective barrier envelope to prevent scratches and light leakage.

• Cleaning: Clean only with approved Imaging Plate cleaner and lint-free wipes to remove dust or fingerprints that could cause artifacts.

• Storage: Store plates flat in a cool, dry environment shielded from secondary radiation sources.

Expert Insight: The Flex HR plate is the digital equivalent of slow-speed, fine-grain film (like Industrex DR50). It is the best choice when "Class Special" or "Class 1" image quality is mandated by the inspection code.

SKU: 1775576
