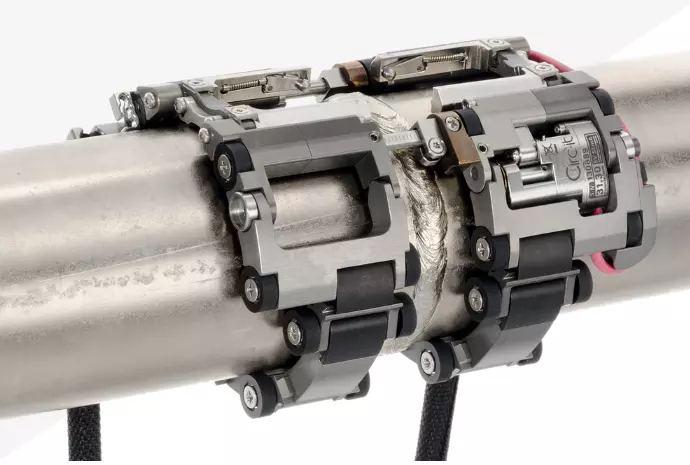

The JIReh CIRC-IT - Dual Probe Weld Scanner is a low-profile, manual circumferential scanner designed for encoded ultrasonic inspection of small diameter pipes and tubes. This scanner is specifically compatible with Sonatest VEO and Prisma instruments via its integrated single-axis encoder connector.

Engineered for tight spaces, the CIRC-IT boasts an ultra-low profile design requiring only 11 mm (0.433 inches) of radial clearance, enabling inspections in limited access areas. Its unique construction allows it to scan pipe and tube diameters as small as 21.4 mm (0.84 inches) and up to 114.3 mm (4.5 inches), making it a valuable tool for inspecting a wide range of small diameter components.

The CIRC-IT is designed to carry two ultrasonic probes simultaneously, allowing for efficient inspection of the weld and heat-affected zone in a single pass. Durable urethane wheels provide smooth rolling and reliable traction, even during vertical scanning applications. The scanner also features a cable management system to organize irrigation lines and probe cables, ensuring a streamlined inspection process

.

Key Features:

• Low Profile Design: Requires only 11 mm (0.433 in) radial clearance for limited access inspection.

• Small Diameter Scanning: Inspects pipes and tubes from 21.4 mm (0.84 in) to 114.3 mm (4.5 in).

• Dual Probe Capability: Carries two ultrasonic probes for efficient inspection.

• Sonatest VEO/Prisma Compatibility: Features a single-axis encoder connector for seamless integration.

• Encoded Scanning: Provides accurate positional data for reliable defect mapping and sizing.

• Urethane Wheels: Ensure smooth rolling and adequate traction.

• Quick Change Links: Offer infinite adjustment for various pipe diameters.

• Cable Management System: Organizes irrigation and probe cables.

Benefits:

• Efficient Inspection of Small Diameter Pipes: Specifically designed for challenging small-bore applications.

• Enhanced Access: Low profile allows inspection in tight spaces.

• Comprehensive Weld Examination: Dual probe capability enables thorough coverage.

• Accurate Data Acquisition: Encoded scanning ensures reliable results.

• Easy to Use: Manual operation with quick adjustments for different pipe sizes.

• Durable and Reliable: Built for demanding inspection environments.

Applications:

• Circumferential weld inspection on small diameter pipes and tubes in industries such as oil & gas, chemical processing, and manufacturing.

• Inspection in areas with limited radial clearance.

• Quality assurance during welding processes on small bore components.

• In-service inspection and integrity assessment of small diameter pipelines and tubing.
