Magnafield — UVA-365-ES UV-A Light Meter with External Sensor

365 nm | Up to 20,000 µW/cm² | Backlit LED Display | Battery Indicator | 1-Meter Probe CableSKU: UVA-365-ES

Overview

The Magnafield UVA-365-ES is a professional-grade, portable UV-A light meter engineered specifically for measuring ultraviolet light intensity at 365 nm — the peak wavelength required for fluorescent magnetic particle inspection (MPI), fluorescent penetrant inspection (FPI), and a wide range of other industrial and scientific UV-A applications. The defining feature of the UVA-365-ES is its external sensor design — a separate UV-A sensing head connected to the display unit via a 1-meter flexible probe cable — allowing inspectors to measure UV-A intensity at precise locations without placing the entire meter body into the inspection area, particularly in tight, confined, or awkward access locations where a standard integrated-sensor meter cannot be positioned accurately.

With a measurement range of up to 20,000 µW/cm², the UVA-365-ES covers the full range of UV-A intensities encountered in industrial NDT inspection environments — from the minimum 1,000 µW/cm² required by ASTM E1444 and ASTM E1417 for compliant fluorescent inspection, all the way to the highest-output LED UV lamps in current use. No range switching is required at any point — the meter handles the full measurement range automatically in a single range, making readings faster and eliminating operator error from incorrect range selection.

What's Included

Key Specifications

Box Dimensions & Shipping Weight (Estimated)

Dimensions and weight are estimates based on typical packaging for UV-A light meter units of this class. Please verify with your freight forwarder prior to shipping.

External Sensor Design — The Critical Advantage

The UVA-365-ES's most important practical advantage over integrated-sensor UV meters is the physical separation between the sensing head and the display unit via the 1-meter probe cable. This design solves a common and frustrating problem encountered during fluorescent NDT inspection: placing the meter body accurately in the exact location where UV-A intensity needs to be measured — particularly when that location is:

• Deep inside a pressure vessel nozzle or bore
• In the root of a narrow weld joint or fillet
• Underneath a component on a conveyor or inspection bench
• At an angle or orientation where the display panel of an integrated meter cannot be read
• In a confined space or access-restricted area where the full meter body cannot fit

With the UVA-365-ES, the compact external sensor head is positioned precisely at the measurement location while the display unit remains in a convenient, readable position — allowing the inspector to take accurate, code-compliant UV-A intensity readings in locations that integrated-sensor meters simply cannot reach.

Key Features

Large Backlit LED Display The bright, backlit LED display is clearly readable in the darkened conditions of a fluorescent inspection area — where ambient light levels are minimized to maximize indication visibility. No struggling to read a dim screen in near-darkness.

Full Range — No Switching Required The UVA-365-ES covers the complete 0–20,000 µW/cm² measurement range in a single automatic range — from the minimum compliant inspection intensity all the way to the highest-output LED UV lamps available. The inspector simply holds the sensor at the measurement location and reads the result — no mode switching, no range selection, no chance of an out-of-range error.

Hold Feature The display hold function freezes the current reading on the display for recording — useful when the measurement location cannot be read simultaneously while holding the sensor in position, or when documenting readings for inspection records.

Battery Indicator A dedicated low battery warning on the display alerts the inspector before the battery voltage drops low enough to affect measurement accuracy — preventing out-of-tolerance readings from a depleted battery going unnoticed.

Auto Power Off Automatic power-off after a period of inactivity preserves battery life and ensures the meter is ready when needed rather than arriving at the inspection with a depleted battery.

Integrated UV Filter The external sensor head incorporates an integrated UV-A filter that blocks visible and near-UV wavelengths outside the 365 nm measurement band — ensuring the displayed reading reflects true UV-A intensity only, without contamination from visible light or other UV wavelengths.

Compliance & Standards

The Magnafield UVA-365-ES UV-A light meter is suitable for performing UV-A intensity measurements required by the following NDT codes and standards:

• ASTM E1444 — Standard Practice for Magnetic Particle Testing (minimum 1,000 µW/cm² at inspection surface)
• ASTM E1417 — Standard Practice for Liquid Penetrant Testing (minimum 1,000 µW/cm² at inspection surface)
• ASTM E3022 — Standard Practice for Measurement of UV-A and Visible Light for MPI
• ISO 3059 — Non-destructive testing: Penetrant testing and magnetic particle testing — Viewing conditions
• EN ISO 9934-2 — Non-destructive testing: Magnetic particle testing — Equipment
• AMS-2644 — Inspection Material, Penetrant
• AMS-2647 — Fluorescent Penetrant Inspection, Aerospace Applications
• NABL Traceable Calibration — certificate included

UVA-365-ES vs. UVA-365-IS — Which Model Do You Need?

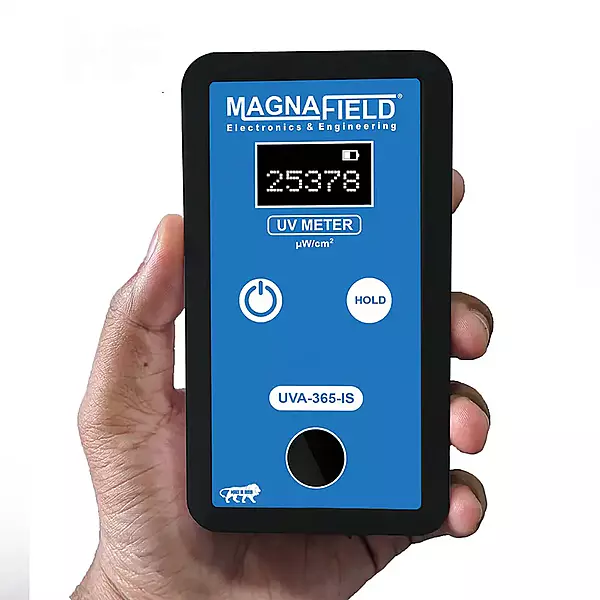

For inspections on open, flat, or easily accessible surfaces, the UVA-365-IS integrated sensor model offers maximum simplicity. For any application where the measurement point cannot be directly accessed by a full meter body — pressure vessels, nozzles, confined spaces, narrow joints — the UVA-365-ES external sensor model is the correct choice.

Ideal Applications

• UV-A intensity verification for fluorescent magnetic particle inspection (MPI) — ASTM E1444 compliance
• UV-A intensity verification for fluorescent liquid penetrant inspection (FPI) — ASTM E1417 compliance
• Aerospace fluorescent inspection UV-A measurement — AMS-2644, AMS-2647
• UV-A lamp performance monitoring and periodic lamp verification checks
• Confined space and restricted access UV-A measurement — pressure vessel nozzles, bores, and weld joints
• UV sterilization system intensity monitoring
• Blue light radiation hazard monitoring in welding environments
• Photochemical and graphic arts UV-A process monitoring
• Any industrial or scientific application requiring accurate, traceable 365 nm UV-A intensity measurement
