NM0130FBH

The 30 FBH Resolution Block is an indispensable reference standard for ultrasonic testing (UT) professionals who require a precise assessment of their normal beam transducer's resolution and sensitivity capabilities. Expertly crafted from 1018 carbon steel, this block ensures consistent and reliable ultrasonic response, crucial for accurate evaluations.

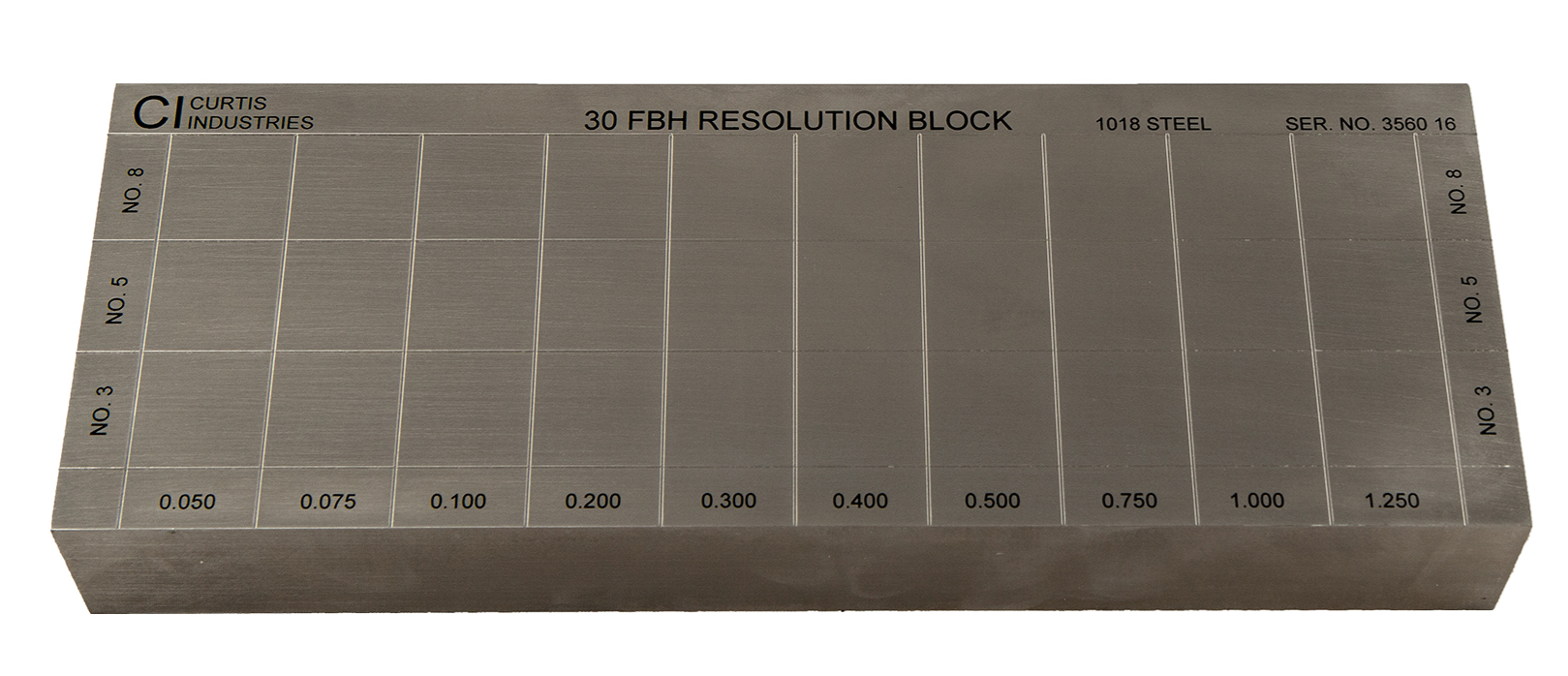

This meticulously designed block features three distinct sets of ten (10) Flat Bottom Holes (FBH) with diameters of 3/64", 5/64", and 8/64". These varying hole sizes, combined with a comprehensive range of metal travel distances from 0.050" to 1.250", allow for a thorough evaluation of resolution performance at different depths within the test material. Specified in English units, this block caters directly to users working with imperial measurement systems.

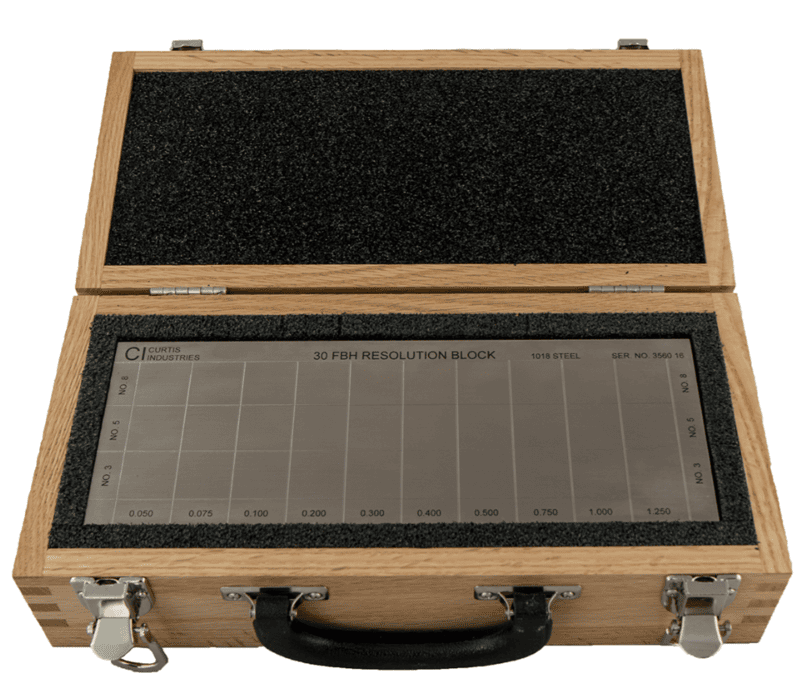

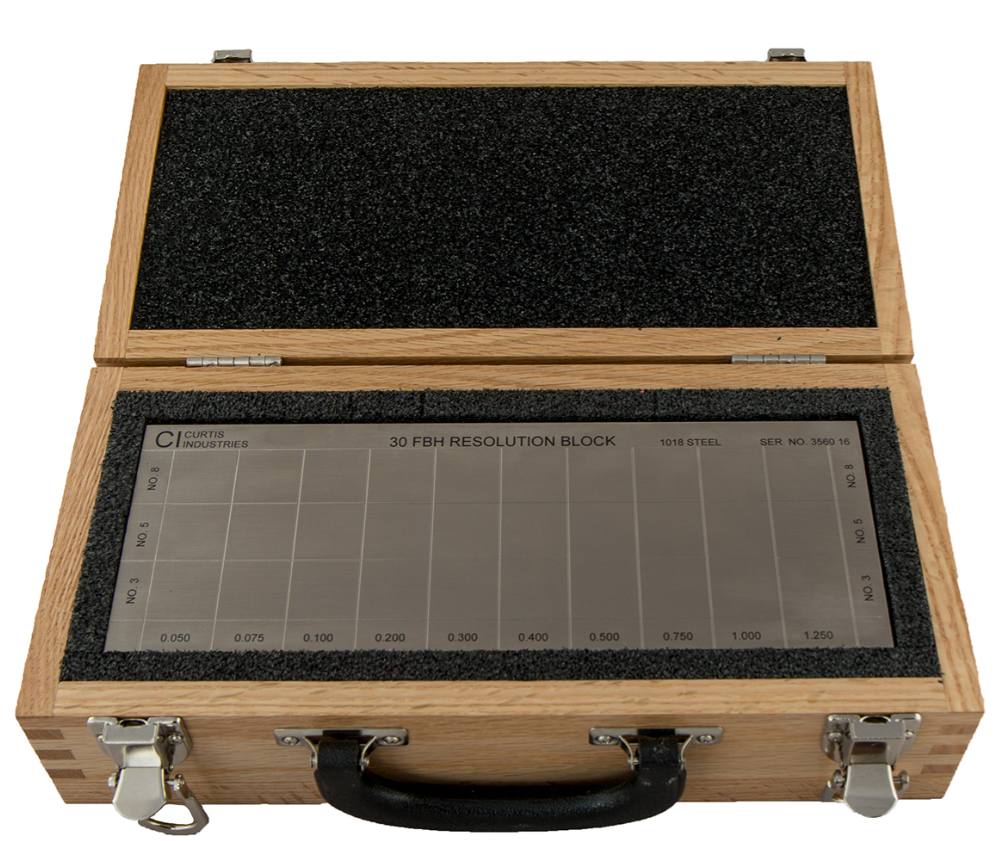

For secure storage and convenient portability, the 30 FBH Resolution Block is provided with a robust and fitted hardwood case. This protective case safeguards the block from potential damage, ensuring its longevity and maintaining its precision accuracy. Furthermore, each block typically includes a Certificate of Conformance, and often offers the option for a detailed dimensional inspection report accompanied by ultrasonic plots, providing complete traceability and verification of the block's specifications.

Key Selling Points:

• Precisely Evaluates Transducer Resolution: Enables accurate assessment of a transducer's ability to distinguish closely spaced reflectors.

• Determines System Sensitivity: Facilitates the establishment of minimum detectable flaw sizes for reliable inspections.

• Supports Area/Amplitude Plot Generation: Allows for the creation of essential reference curves for accurate flaw sizing and evaluation.

• Ensures Testing Standards Compliance: Facilitates testing in accordance with ASTM E127 requirements.

• Provides Secure Storage and Portability: The included hardwood case protects the block and makes transportation easy.

• Offers Traceable Accuracy: Includes a Certificate of Conformance, with options for detailed inspection reports and ultrasonic plots.

Benefits:

• Optimize Inspection Accuracy: Ensure your ultrasonic transducers are performing to the required resolution and sensitivity standards.

• Improve Flaw Detection Reliability: Confidently establish the smallest detectable flaw size for your specific testing setup.

• Streamline Flaw Characterization: Generate accurate area/amplitude plots for precise flaw sizing.

• Meet Industry Standards: Facilitate compliance with critical ASTM E127 testing protocols.

• Protect Your Investment: The durable hardwood case ensures the long-term accuracy and usability of the block.

Applications:

• Critical evaluation and comparison of normal beam ultrasonic transducers.

• Essential for system setup and calibration in ultrasonic thickness gauging and flaw detection.

• Vital for quality control processes in manufacturing and inspection across various industries.

• An invaluable tool for training and educational purposes in ultrasonic testing methodologies.
