NM01UK1KIT

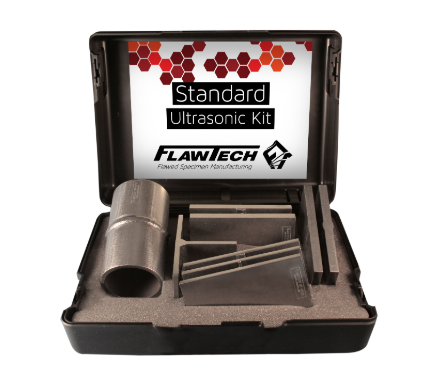

The Ultrasonic Kit Contains:

10 Specimens: 8 Plates, 1 Pipe & 1 Tee

Each specimen contains 2 “REAL FLAWS” Randomly placed

Specimens are packaged in 2 Free Carrying Cases, Complete with Document Package with “Flaw Truth” documented by CAD drawings with a Standard Tolerance of (+/-) 0.150″ (4mm).

20 Total Discontinuities

• Material: Carbon Steel

• Kit Spec: 10 Specimens

  • (4) Plates: 0.375”T x 4” x 8”

  • (4) Plates: 0.625”T x 4” x 8”

  • (1) Tee: 0.375″T x 4” x 8” x 4”

  • (1) Pipe: 4″Sch80 (0.337″T wall)

• Flaws: 2 each specimen, for a total of 20

• Documentation Package Includes: Certificate of Conformance, CAD Drawings and Test Sheets

• 2 Carrying Cases: 6” x 16” x 20” each

Flaws Included:
#10 – Toe Crack SV
#12 – Root Crack in SV
#15 – Centerline Crack, SV (Sub-surface)
#16 – Circumferential Crack SV (flush crown)
#17 – Transverse Crack in SV (flush crown)
#18 – Base Metal Crack SV (top HAZ area)
#30 – Porosity DV (sub-surface)
#31 – Porosity Fillet (sub-surface)
#34 – Single Gas Pore SV
#37 – Slag Inclusion SV (weld groove area)
#38 – Slag Inclusion Fillet (root area)
#50 – Lamination SV (base metal)
#52 – Lack of Fusion SV (crown area)
#55 – Lack of Fusion SV (surface breaking at root)
#56 – Incomplete Root Penetration SV
#57 – Incomplete Root Penetration DV
#59 – Incomplete Groove Weld (crown area)

Shipping Weight 65 lbs.
