NM01D280----S

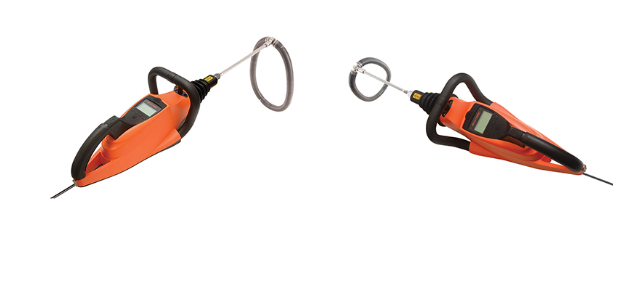

The Elcometer 280 Pulsed DC Holiday Detector (Standard Version) is a state-of-the-art "stick type" instrument designed for efficient, safe, and reliable high voltage detection of flaws (holidays, pinholes) in protective coatings. Utilizing pulsed DC technology, this detector can effectively identify imperfections such as thin spots and bubbles, even on coatings that are damp, dirty, or slightly conductive.
The Elcometer 280 sets a high standard for safety with features like a two-stage safety switch, bright LED indicators, and clear screen icons that signal when high voltage is active. The extended ribbing on the probe provides additional protection against spark creep, ensuring operator safety.
This standard version of the Elcometer 280 offers a user-selectable voltage range of 0.5 to 35 kV, allowing for the inspection of coatings up to 25 mm (1 inch) thick. A flashing display, bright LED, and user-adjustable volume alarm clearly indicate the detection of a holiday.
A key advantage of the Elcometer 280 is its ability to inspect coatings on large surfaces and pipelines without the need for an earth return lead connected to the component substrate. This significantly streamlines the inspection process in many situations.
The detector features a clear, backlit LCD display that provides all relevant information, even in dark environments. Large, waterproof buttons ensure ease of use, even when wearing gloves. The balanced, ergonomic design and shoulder strap attachment point allow for comfortable, continuous use over extended periods.
Key Selling Points:
Advanced Pulsed DC Technology: Effective detection of holidays on various coating conditions.
No Earth Return Lead Required: Ideal for inspecting large surfaces and pipelines.
Wide Voltage Range (0.5 - 35 kV): Suitable for coatings up to 25 mm thick.
Enhanced Safety Features: Two-stage safety switch, LED indicators, and spark creep protection.
Clear Visual and Audible Holiday Indication: Flashing display, bright LED, and adjustable alarm.
Rugged and Water-Resistant Design: Ensures durability in harsh environments.
Ergonomic and User-Friendly: Balanced design, large buttons, and clear display for comfortable operation.
Benefits:
Increased Inspection Efficiency: Inspect large areas quickly without grounding constraints.
Reliable Flaw Detection: Effectively identifies critical coating defects.
Enhanced Operator Safety: Incorporates multiple safety features for user protection.
Versatile Applications: Suitable for a wide range of coating types and thicknesses.
Durable and Long-Lasting: Designed for use in demanding field conditions.
Applications:
The Elcometer 280 Pulsed DC Holiday Detector (Standard Version) is ideal for inspecting coatings in various industries, including:
Pipeline construction and maintenance
Storage tank fabrication and inspection
Shipbuilding and repair
Protective coating application on large structures
General industrial coating applications
The Elcometer Model 280 Pulsed DC Holiday Detector (Standard Version) provides a safe, efficient, and reliable solution for detecting flaws in protective coatings across a wide range of applications. Its advanced technology and user-friendly design make it an essential tool for quality control and corrosion prevention.
