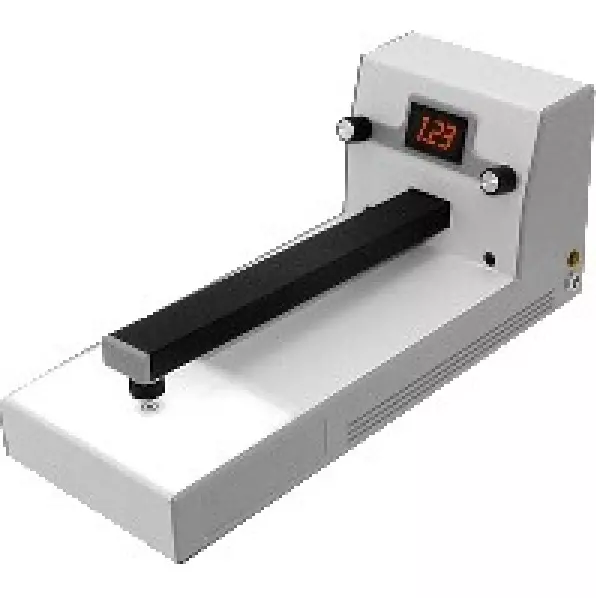

NM015009
The ESECO Speedmaster® SM-10T Digital Transmission Densitometer (B&W) is a portable and user-friendly instrument specifically designed for accurate and repeatable measurement of optical density in black and white films. This densitometer is well-suited for a variety of applications, including:
Medical X-ray
Mammography
NDT (Non-Destructive Testing) X-ray
Graphic Arts
Photographic Film
Processor Control Test Films
Leveraging ESECO's extensive experience in designing reliable quality instruments, the SM-10T offers proprietary technology that delivers instant and accurate results comparable to more expensive units. It boasts a total accuracy of +/- 0.02 D within a measuring range of 0.00 to 5.00 Optical Density and complies with ANSI Standard 5/2-1985 / NBS Standard 1009.
The SM-10T is designed for convenience and efficiency. It features an automatic "stand-by" mode to conserve power, contributing to extended battery life when operating on its portable power source (two 9-volt alkaline batteries, included). For stationary use, it can also be operated with the provided UL/CSA-approved AC wall plug-in power supply.
With no warm-up time required, the SM-10T provides fast and dependable readings. Simply depress and release the sensor probe to illuminate the reading stage, position the film over the target aperture, and depress the probe again. The large, easy-to-read digital meter instantly displays the density reading and automatically returns to the energy-saving "stand-by" mode.
Backed by ESECO's one-year "No Hassle" warranty, the Speedmaster SM-10T is a cost-effective and reliable choice for ensuring quality assurance in film processing.
Key Features:
Measures Black & White Film: Specifically designed for B&W density readings.
Wide Measuring Range: 0.00 to 5.00 Optical Density.
High Accuracy: ± 0.02 D.
Excellent Repeatability: ± 0.01 D.
Instant Readings: No warm-up time required.
Portable Operation: Powered by two 9-volt alkaline batteries (included).
Stationary Operation: Includes AC wall plug-in power supply.
Large Digital Display: Easy-to-read measurements.
Automatic Stand-by Mode: Conserves battery power.
Rugged and Durable: Built for reliable use.
One-Year "No Hassle" Warranty: Provides peace of mind.
Benefits:
Ensures Accurate Film Processing: Provides the necessary data for quality control.
Versatile Applications: Suitable for medical, NDT, graphic arts, and photographic film measurement.
Portable and Convenient: Easy to use in various locations.
Reliable Performance: Delivers consistent and accurate readings.
Cost-Effective Solution: An affordably priced instrument for essential film density measurement.
Applications:
Quality control in radiology and medical imaging.
Monitoring film processing in non-destructive testing.
Density measurements in graphic arts and photography.
Ensuring proper exposure and development in various film-based applications.
The ESECO Speedmaster® SM-10T Digital Transmission Densitometer (B&W) offers a reliable, accurate, and portable solution for measuring the density of black and white films across a wide range of industries.
