NM0327303

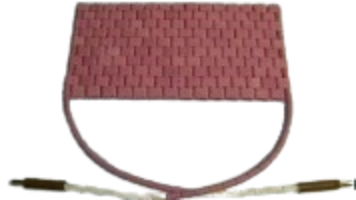

The 60 Volt Ceramic Pad Heater, 6" X 14.5" (CMH6-60) is a versatile and durable heating solution engineered for a wide range of industrial applications requiring flexible and efficient heat transfer. Constructed with high-quality materials, this heater provides consistent and uniform heat to various surfaces, even those with complex geometries.

At the core of this heater is a robust multi-strand 80/20 Nickel/Chrome resistance wire, known for its exceptional high-temperature capability, reaching up to 2150°F (1176°C). This heating element is carefully insulated by interlocking sintered alumina ceramic beads. These beads not only provide superior electrical insulation but also contribute to the heater's flexibility, allowing it to easily conform to curved and irregular shapes for optimal surface contact.

With approximate dimensions of 6 inches by 14.5 inches, this specific model is ideally sized for localized heating on pipes, pressure vessels, and other components where a defined area needs controlled heat application. The "CMH6" designation indicates an approximate width of 6 inches within the product line.

Key Selling Points:

• Highly Flexible Design: Easily conforms to curved and irregular surfaces, ensuring maximum heat transfer efficiency.

• Exceptional High-Temperature Capability: Capable of operating up to 2150°F (1176°C) for demanding heating requirements.

• Durable and Robust Construction: Features a premium 80/20 Nickel/Chrome heating wire and interlocking ceramic beads for long-lasting reliability.

• Efficient and Uniform Heat Distribution: The design ensures consistent heat across the contact area.

• Optimized Dimensions: The 6" x 14.5" size is perfect for targeted and localized heating applications.

• Engineered for 60 Volt Systems: Specifically designed for safe and effective operation with 60V power supplies.

Benefits:

• Effective for Preheating and Post-Weld Heat Treatment: Ideal for stress relieving and ensuring proper metallurgical bonding in welding processes.

• Versatile Industrial Heating Solution: Suitable for heating pipes, pressure vessels, tanks, and other industrial components with complex shapes.

• Improved Energy Efficiency: Direct contact heating and the option for external insulation (not included) can accelerate heating times and reduce energy consumption.

• Ensures Reliable and Consistent Performance: Constructed with premium materials for dependable operation.

Applications:

This 60 Volt Ceramic Pad Heater is widely used in various industrial heat treating applications, including:

• Preheating materials before welding to minimize thermal stress and improve weld quality.

• Post-weld heat treatment (PWHT) to relieve residual stresses in welded joints, enhancing structural integrity.

• Heating pipes and vessels for diverse industrial processes requiring controlled temperature application.

• Applying heat to irregular surfaces where traditional heating methods are difficult to implement effectively.

• Any application demanding localized and controlled heating up to high temperatures.

Approximate Dimensions (inches):

• Width: 6 inches

• Length: 14.5 inches

• Thickness: Approximately 0.25 - 0.5 inches (This can vary slightly depending on the manufacturer and specific construction.)

When inquiring about this product, be specific about the model number (CMH6-60) and the dimensions to ensure you receive the correct heater for your application. You may also want to inquire about compatible power supplies, temperature controllers, and insulation materials for a complete heating solution.
