NM01RCA10

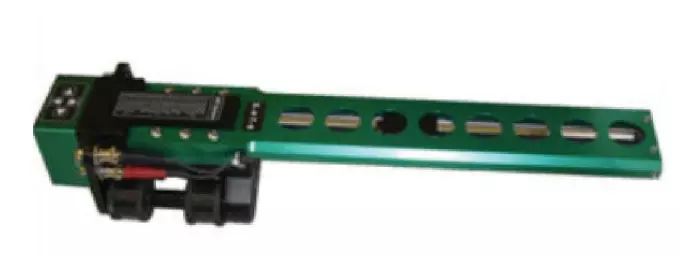

The RCA-10 Magnetic Attached Cantilever Arm Scanner Kit is a robust and versatile automated scanning solution designed to streamline your ultrasonic inspections on a wide range of ferrous materials, from pipes to flat plates. Featuring a powerful magnetic attachment, this scanner ensures stable and consistent probe coupling for reliable data acquisition.
With a practical 10-inch (254 mm) scan length, the RCA-10 is ideally suited for detailed area mapping, corrosion surveys, and weld inspections on components ranging from 4-inch diameter pipes and larger, to flat plate surfaces. Its intelligent cantilever arm design allows for effective scanning even around obstructions and complex geometries, enhancing inspection versatility.
This comprehensive kit provides everything you need to get started immediately: a specialized mushroom-style probe holder (72224-00-00) engineered for stable contact, particularly on challenging surfaces; the portable RBCU-1 Battery Control Unit for cordless operation; a 15-foot (approximately 4.6 meters) RCCB Interface Cable specifically designed for seamless integration with AC-Raptor ultrasonic testing instruments; and a dedicated Battery Charger to keep you powered up.
Key Selling Points:
Strong Magnetic Attachment: Ensures stable and reliable mounting for consistent scanning.
Versatile Pipe and Flat Plate Compatibility: Scans components from 4" OD pipes to flat surfaces.
Obstruction-Friendly Cantilever Arm: Enables effective scanning in complex geometries.
Optimized for Corrosion Mapping: Includes a mushroom probe holder for stable contact on irregular surfaces.
Portable and Cordless Operation: Powered by the included RBCU-1 Battery Control Unit.
Seamless AC-Raptor Integration: Designed for direct connectivity with AC-Raptor instruments.
Complete Turnkey Solution: Includes all necessary components for immediate use.
Benefits:
Increased Inspection Efficiency: Automated scanning provides consistent and repeatable data.
Enhanced Data Reliability: Stable magnetic attachment ensures accurate probe coupling.
Greater Application Flexibility: Inspect a wide range of component shapes and sizes.
Improved Inspection Quality: Consistent scanning and probe contact lead to more reliable results.
Convenient Portability: Battery power enables inspections in various locations without power outlets.
Simplified System Integration: Direct compatibility with AC-Raptor instruments saves setup time.
Applications:
Automated ultrasonic corrosion mapping on pipes, pressure vessels, and storage tanks.
Efficient weld inspection on pipes and flat plate structures.
General automated ultrasonic testing and thickness mapping on ferrous materials.
Ideal for both field and in-plant inspection environments.
