The FlawTech AWS D1.5 UT Bridge Kit (#BK-1) is a comprehensive and meticulously designed training and evaluation tool for ultrasonic testing (UT) personnel and procedures, specifically tailored to the requirements of the American Welding Society (AWS) D1.5 Structural Welding Code - Steel. This kit provides a practical and realistic platform for learning, practicing, and assessing proficiency in detecting and characterizing weld discontinuities using both conventional and Phased Array Ultrasonic Testing (PAUT) techniques.

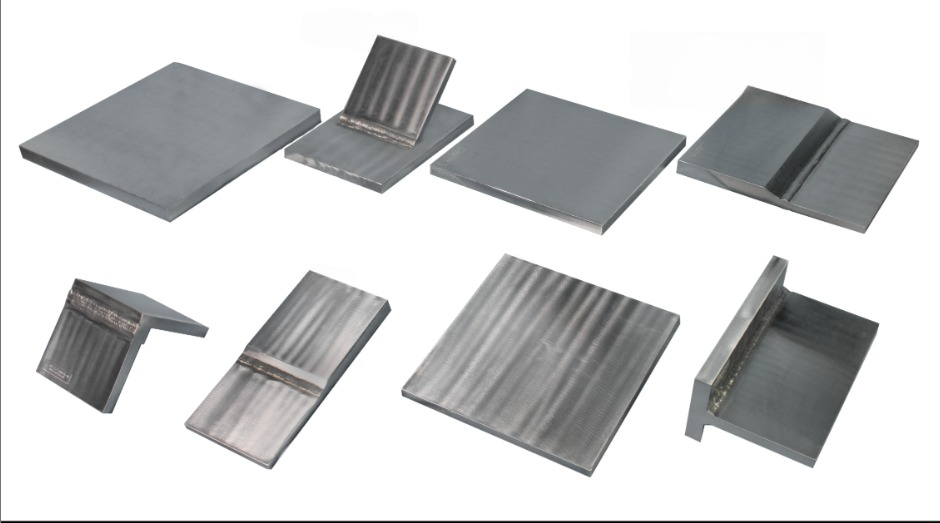

Comprising a set of eight individual test specimens, each crafted from mild carbon steel, this kit offers a diverse range of scenarios encountered in real-world welded structures. Each specimen is engineered to contain three distinct flaws, resulting in a total of 24 embedded flaws within the complete kit. These flaws are not randomly introduced; instead, they are specially selected and manufactured to represent common fabrication defects that can occur during the welding process, as well as in-service indications that may develop over the operational life of a welded component. This thoughtful selection ensures that trainees and evaluators are exposed to a realistic spectrum of challenges faced in UT inspections.

The flaws within the specimens are intentionally designed to be detectable using ultrasonic testing methods, making the kit an ideal resource for hands-on training and performance qualification. The variety of flaw types and orientations allows users to explore the capabilities and limitations of different UT techniques, probe configurations, and analysis methods. This is particularly valuable for understanding the nuances of both traditional UT and the more advanced PAUT methodologies.

For convenient storage and transportation, the FlawTech AWS D1.5 UT Bridge Kit (#BK-1) is supplied in a robust shipping container with dimensions of 32” x 20” x 21”. The substantial total weight of approximately 300 LBS underscores the quality and quantity of material included in the kit, ensuring the durability and longevity of the training specimens.

In essence, this kit serves as an invaluable resource for:

• Hands-on training of UT technicians in the principles and practical application of ultrasonic flaw detection and characterization according to AWS D1.5.

• Evaluation and qualification of UT personnel to ensure competency in weld inspection.

• Development and validation of UT inspection procedures for compliance with industry standards.

• Comparative studies of different UT techniques and equipment.

• Educational purposes in welding technology and non-destructive testing programs.

The FlawTech AWS D1.5 UT Bridge Kit (#BK-1) provides a tangible and standardized means to bridge the gap between theoretical knowledge and the practical skills required for effective ultrasonic examination of welded structures, ultimately contributing to improved quality assurance and structural integrity.
