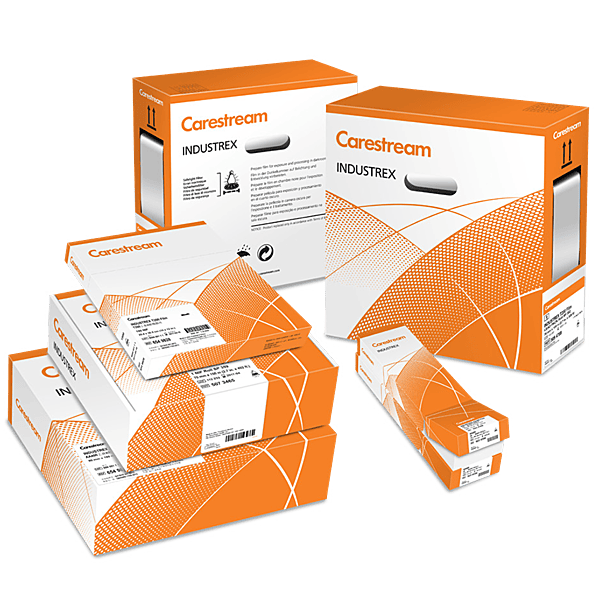

Carestream INDUSTREX M100 | High-Contrast NDT Radiographic Film
The Versatile Industry Standard for Quality and Consistency
INDUSTREX M100 is the "gold standard" for industrial radiography, offering the perfect balance between high resolution and speed. Engineered for critical inspections across a wide range of materials, it utilizes Carestream’s patented T-GRAIN Emulsion technology. This film is designed for technicians who require exceptionally high contrast and fine grain to detect tight cracks, lack of fusion, and other subtle discontinuities in both light and heavy-walled components.
Key Performance Features
T-GRAIN Emulsion Technology: Provides a "cold," clean image tone with significantly reduced noise. This advanced grain structure allows for high-definition imaging even at higher energy levels.
High Contrast & Fine Grain: Classified as an ASTM Class I film, it ensures that even the slightest density changes—indicating internal flaws—are clearly visible during interpretation.
Flexible Exposure Options: Optimized for use with X-ray generators and Gamma-ray sources (Iridium-192 or Cobalt-60), making it a versatile choice for both shop and field radiography.
Industrial Durability: Features a robust protective top-coat that provides superior resistance to static, heat, and moisture, as well as minimizing scratches and pressure marks during handling.
Processing Reliability: Delivers consistent results across various processing environments, including manual tanks or high-speed automatic processors.
Technical Specifications & Compliance
| Feature | Specification |
| Film Class (ASTM E1815) | Class I |
| Film Class (EN ISO 11699-1) | Class 3 |
| Packaging Type | NIF (Non-Interleaved / Bulk Pack) |
| Sheet Size | 4.5 x 10 inches (11.4 x 25.4 cm) |
| Quantity | 100 Sheets per box |
| Base Support | Blue-tinted Polyester (7 mil) |
| Processing | Manual or Automatic |
Physical Dimensions & Weight
| Attribute | Specification (Metric) | Specification (Imperial) |
| Total Weight (Approx.) | ~0.9 kg | ~2.0 lbs |
| Sheet Dimensions | 114 x 254 mm | 4.5 x 10 in |
| Box Height | ~38 mm | ~1.5 in |
Ideal Applications
Pipeline Welds: Perfectly sized for "window" shots on small to medium diameter piping.
Aerospace: High-detail inspection of airframe components and composite materials.
Foundries: Detection of gas porosity and shrinkage in precision castings.
Maintenance: Volumetric inspection of structural welds in bridges and buildings.
