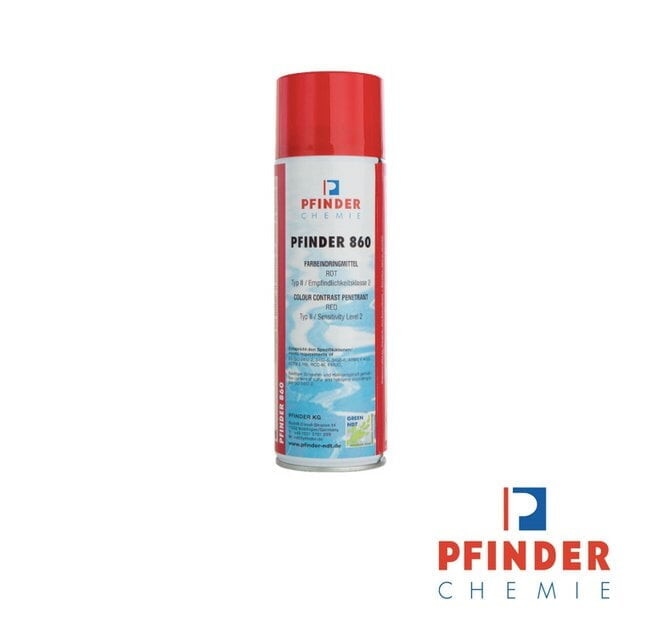

The PFINDER 860 Color Contrast Penetrant is a high-sensitivity, water-washable penetrant spray that provides effective crack detection with clear, sharp red indications. Engineered for temperatures from -20°C to +90°C, this versatile penetrant spray is suitable for use in a wide range of environments. Its Type II, Sensitivity Level 2 formula is certified per EN ISO 3452-5, EN ISO 3452-6, and DIN EN ISO 3452-1 standards, delivering high contrast and user-friendly interpretability even on rough surfaces.

PFINDER 860 achieves low background on rough surfaces, ensuring easy identification of surface defects with minimal penetrant residue. With efficient rinsability, it is ideal for manufacturing processes that require high contrast and sharp defect indications.

Key Features:

• Wide Temperature Range: Effective between -20°C and +90°C, enabling use in diverse conditions.
• High Sensitivity and Low Background: Delivers clear, high-contrast indications with minimal residue for easy readability.
• Efficiency in Use: Initial tests show a 30% reduction in developer consumption due to PFINDER 860’s high sensitivity and intensity.
• Compliant with International Standards: Certified per EN ISO 3452-5, EN ISO 3452-6, and AMS 2644, suitable for Type II, Method A + C, Form e applications.
• Packaging: Available in convenient 500-ml aerosol cans, 5L canisters, and 200L drums. Each box contains 12 aerosol cans, ensuring sufficient supply for ongoing use.

Technical Specifications:

• Density (20°C): 993 kg/m³
• Viscosity (20°C): Approx. 11.3 mm²/s
• Flash Point: >100°C
• Productivity: Up to 10 m² per can
• Storage Temperature: 5°C to 45°C
• Shelf Life: 2 years

Applications:

PFINDER 860 is ideal for non-destructive testing (NDT) across industries, including aerospace, automotive, and heavy manufacturing, especially in environments where high-sensitivity and low-residual detection is essential.

Instructions for Use:

1. Application: Spray evenly over the surface and allow penetration for a minimum of 5 minutes.
2. Excess Penetrant Removal: Rinse with water for clear visibility of indications.
3. Developing: Use with PFINDER 871 developer for optimal results.
