NM01C00100
The Dolphitech DC2 Core Unit (Blackbox, ToughPad, Cables, Pelicase & Accessories) refers to a comprehensive and highly advanced ultrasonic camera system designed for high-resolution non-destructive testing (NDT), particularly excelling in the inspection of composite materials and complex structures. This system combines a powerful "black box" data acquisition unit with a rugged tablet PC and all necessary peripherals, making it a complete solution for demanding field and laboratory applications.
The DC2 Core Unit is the heart of Dolphitech's ultrasonic inspection system, leveraging matrix array transducers (often not included in the "core unit" but required for operation) to generate high-quality A-scan, B-scan, and C-scan images. This allows for detailed visualization of internal defects such as delaminations, disbonds, porosity, impact damage, and foreign object inclusions. The system is renowned for its high-speed data acquisition and ability to produce real-time 2D and 3D images, which significantly enhances inspection efficiency and accuracy.

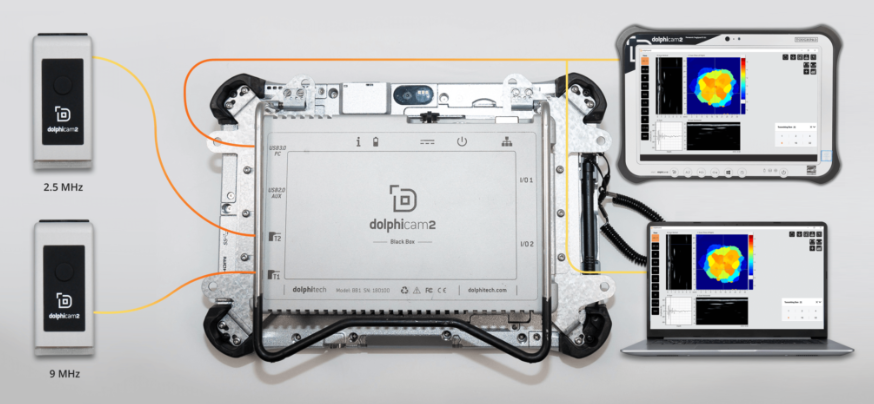

Key Components of the Kit:
Blackbox (DC2 Data Acquisition Unit): This is the central processing unit of the system. It contains the advanced electronics for generating and receiving ultrasonic signals, digitizing data, and performing initial processing. It's designed to be robust and handle high data throughput.

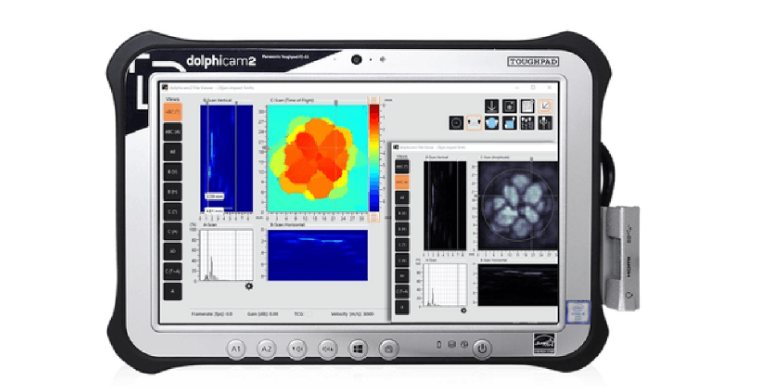

ToughPad (Rugged Tablet PC): A Panasonic Toughpad or similar industrial-grade tablet serves as the user interface and display for the system. These tablets are known for their durability, sunlight readability, and resistance to harsh environments (dust, water, drops), making them ideal for field NDT. The DolphiCam software runs on this ToughPad, providing intuitive control and visualization.
Cables: A full set of necessary cables for connecting the Blackbox to the ToughPad, transducers, and power sources. These are typically robust, industrial-grade cables designed for reliable data transmission in challenging conditions.
Pelicase: A durable, custom-fitted Pelicase (or similar high-performance protective case) is included to house and protect all components of the system during transport and storage. Pelicases are renowned for their extreme ruggedness, watertight seals, and shock protection.
Accessories: The kit typically includes various essential accessories such as:
Chargers for the ToughPad and potentially the Blackbox.
Couplant (for ultrasonic transmission).
Calibration blocks.
Cleaning supplies.
User manuals and documentation.
Key Selling Points:
High-Resolution Imaging: Provides superior resolution for detecting subtle defects in composites and other materials.
Real-time 2D/3D Visualization: Enables immediate and intuitive interpretation of inspection data.
Rugged & Portable: Designed for demanding field use with a durable blackbox and ToughPad, protected by a Pelicase.
Advanced Data Acquisition: High-speed data capture for efficient inspections.
Versatile Applications: Ideal for aerospace, automotive, wind energy, marine, and other industries working with advanced materials.
Intuitive Software: User-friendly interface for easy operation and analysis.
Comprehensive Kit: Includes all core components and accessories needed for deployment.
Benefits:
Enhanced Defect Detection: Uncovers critical flaws that might be missed by conventional NDT methods, especially in complex materials.
Improved Efficiency: Real-time imaging and high-speed data acquisition accelerate inspection processes.
Increased Data Confidence: Provides detailed visual data for thorough analysis and confident decision-making.
Reduced Downtime: Facilitates rapid assessment of material integrity, minimizing operational interruptions.
Robust Field Performance: Designed to withstand challenging industrial and outdoor environments.
