Dakota NDT — ZX-5 DL Data Logging Ultrasonic Thickness Gauge

Data Logging Pulse-Echo Thickness Gauge with USB-C Connectivity, IP65 Protection & 5-Year Limited Warranty

---

Overview

The Dakota NDT ZX-5 DL Data Logging Ultrasonic Thickness Gauge is a professional inspection instrument designed for reliable wall thickness measurement, corrosion monitoring, and material evaluation in industrial NDT applications. Built for field and shop use, this gauge supports pulse-echo ultrasonic measurement workflows across pipes, tanks, vessels, plates, and structural components.

Powered by 120 MHz FPGA timing and a 150 volt square wave pulser, the ZX-5 DL provides dependable ultrasonic performance for routine thickness inspection and corrosion surveys. It supports dual element transducers with 1–10 MHz options, adjustable gain from 40–52 dB in 3 dB steps, and selectable manual or auto zero for flexible setup in different inspection conditions.

Designed for demanding field environments, the ZX-5 DL includes a low-temperature custom LCD display rated to -22°F / -30°C, USB-C connectivity, CDC-compatible serial over USB, optional serial RS232 or Bluetooth module support, 32 megabit flash memory for data storage, IP65 protection, and a 5-year limited warranty.

---

What's Included

Item	Details

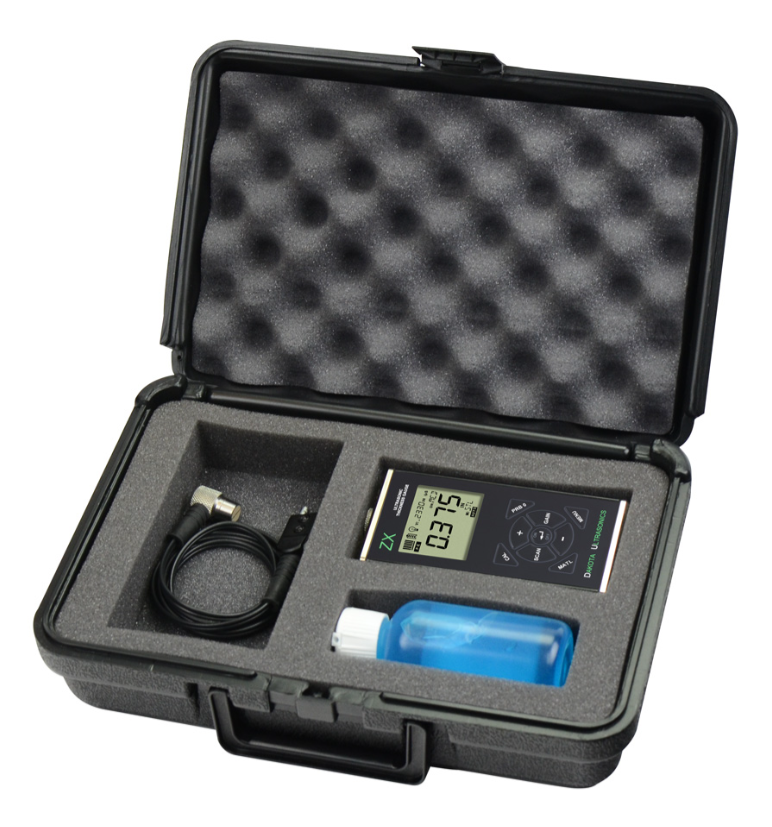

Thickness Gauge	Dakota NDT ZX-5 DL data logging ultrasonic thickness gauge
Measurement Mode	Pulse-echo measurement
Transducer Support	Dual element transducers
Frequency Options	1–10 MHz transducer options
Connectivity	USB-C, CDC-compatible serial over USB
Data Storage	32 megabit flash memory
Documentation	User manual / operating instructions, if included

---

Box Dimensions & Shipping Weight (Estimated)

Parameter	Imperial
Length	12.0 in
Width	10.0 in
Height	5.0 in
Dimensions (L × W × H)	12.0 × 10.0 × 5.0 in
Weight	4.0 lb

---

Key Specifications

Parameter	Details
Product Type	Data logging ultrasonic thickness gauge
Model	ZX-5 DL
Measurement Mode	Pulse-echo
Timing System	120 MHz FPGA timing
Pulser	150 volt square wave pulser
Gain Control	Adjustable, 40–52 dB
Gain Steps	3 dB steps — vlow, low, med, high, vhi
Zero Function	Selectable manual or auto zero
Transducer Type	Dual element transducers
Transducer Frequency Options	1–10 MHz
Display	Low-temperature custom LCD
Display Temperature Rating	-22°F / -30°C
Connectivity	USB-C
USB Communication	CDC-compatible serial over USB
Optional Communication	Serial RS232 or Bluetooth module
Data Storage	32 megabit flash memory
Environmental Rating	IP65
Warranty	5-year limited warranty
Application	Thickness measurement and corrosion monitoring
Manufacturer	Dakota NDT

---

Performance Features

120 MHz FPGA Timing
Provides precise timing support for accurate and repeatable ultrasonic thickness readings.

150 Volt Square Wave Pulser
Delivers strong ultrasonic signal performance for reliable field measurement applications.

Data Logging Capability
32 megabit flash memory supports organized measurement storage for corrosion surveys and inspection documentation.

Adjustable Gain Control
40–52 dB gain range in 3 dB steps allows users to adapt signal response to different inspection conditions.

---

User-Friendly Design

• USB-C connectivity supports modern data transfer workflows

• CDC-compatible serial over USB supports communication with compatible systems

• Selectable manual or auto zero supports flexible setup

• Low-temperature LCD display supports cold environment use

• Adjustable gain presets make setup practical for field inspections

---

Built for Industrial Environments

• IP65 protection rating for field-ready durability

• Low-temperature display rated to -22°F / -30°C

• Suitable for maintenance, fabrication, and QA/QC environments

• Built for corrosion monitoring and wall thickness verification

• Supported by a 5-year limited warranty

---

Compatibility

Compatible with:

• Dual element ultrasonic transducers

• 1–10 MHz probe options

• Pulse-echo thickness measurement workflows

• USB-C data transfer workflows

• Optional RS232 or Bluetooth communication modules

• Corrosion monitoring and wall thickness inspection programs

---

Ideal Applications

• Ultrasonic thickness measurement

• Corrosion monitoring

• Wall thickness verification

• Pipe and tank inspection

• Pressure vessel inspection

• Structural component evaluation

• Data logging inspection routes

• Maintenance and asset integrity programs

---

About Dakota NDT

Dakota NDT is a trusted manufacturer of ultrasonic testing equipment, thickness gauges, flaw detectors, probes, cables, and inspection accessories. Their products are widely used in professional NDT environments where accuracy, durability, and consistent inspection performance are essential.
