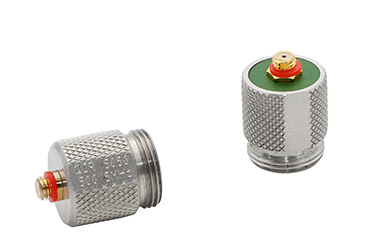

Dakota NDT — Quick Change Shear Wave Transducer (3.5 MHz, 1/2")
Angle Beam UT Probe for Weld Inspection Applications SKU: T-5045-9865Overview
The Dakota NDT Quick Change Shear Wave Transducer is a high-performance ultrasonic probe designed for angle beam inspections and weld evaluation. Operating at 3.5 MHz with a 1/2" element size, this transducer offers an excellent balance between penetration and resolution for detecting subsurface discontinuities.
Designed with a quick change system, this probe allows fast replacement and easy integration with compatible wedges, improving inspection efficiency in both field and shop environments. It is ideal for use with shear wave wedges to generate angled sound beams for weld inspection.
Engineered for reliability and precision, this transducer is widely used in industries such as oil & gas, fabrication, and power generation where accurate flaw detection is critical.
What's Included
| Item | Details |
|---|---|
| UT Transducer | 3.5 MHz, 1/2" shear wave probe (quick change) |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.6 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Probe Type | Shear wave ultrasonic transducer |
| Frequency | 3.5 MHz |
| Element Size | 1/2 in |
| Configuration | Quick change |
| Wave Type | Shear wave (with wedge) |
| Application | Angle beam ultrasonic testing |
Performance Features
Optimized Frequency (3.5 MHz)
Provides a strong balance between penetration depth and resolution.
Angle Beam Capability
Designed for use with wedges to generate shear waves for weld inspection.
Quick Change Design
Allows rapid probe replacement and improved workflow efficiency.
Reliable Detection Performance
Supports accurate identification of subsurface defects.
User-Friendly Design
- Easy installation with quick change system
- Lightweight and compact
- Compatible with standard UT setups
- Designed for efficient inspection workflows
Built for Industrial Environments
- Durable construction for demanding applications
- Suitable for field and shop inspections
- Reliable performance in continuous use
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Dakota NDT wedges (angle beam setups)
- Ultrasonic flaw detectors
- Quick change probe systems
- Weld inspection workflows
Ideal Applications
- Weld inspection and flaw detection
- Structural steel inspection
- Pipeline and pressure vessel inspection
- Oil & gas and power generation industries
- Fabrication and manufacturing QA/QC
- Angle beam ultrasonic testing (UT)
