NM01MONITOR1000EC

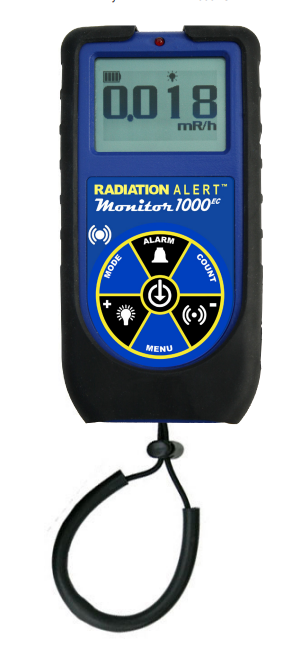

The SE International Radiation Alert Monitor 1000EC is a robust and reliable survey meter designed for high-range measurement of gamma and X-ray radiation. Engineered for professionals in NDT, industrial radiography, nuclear facilities, emergency response, and environmental monitoring, the Monitor 1000EC provides critical radiation data with exceptional durability and ease of use. It is a workhorse instrument built to withstand challenging environments while delivering accurate and consistent readings up to 1000 mR/hr (10 mSv/hr).
This meter is a trusted choice for situations requiring a broad measurement range and dependable performance, ensuring the safety of personnel and compliance with radiation protection regulations.
Key Features & Benefits:
Wide Measurement Range: Accurately measures gamma and X-ray radiation from 0.1 to 1000 mR/hr (0.001 to 10 mSv/hr), covering a broad spectrum of high-level radiation fields.
Energy Compensated: Features an internal energy compensated GM tube, providing a more linear response over a wide range of radiation energies for enhanced accuracy.
Digital Display: Clear and easy-to-read digital LCD display shows readings in mR/hr or µSv/hr (user selectable), along with an analog bar graph for quick visual trending.
Audible Click & Alert: Provides a traditional audible click for each count, along with a selectable audible alert that sounds when radiation levels exceed a user-settable threshold.
Total/Accumulated Dose: Can display accumulated dose (up to 1000 mR / 10 mSv), allowing users to track total exposure over time.
Built-in Timer: Features a timed count mode for precise measurement of low-level contamination.
Durable & Rugged Design: Housed in a robust, high-impact plastic case, designed for reliable operation in demanding industrial and field conditions.
Long Battery Life: Operates on a single 9-volt alkaline battery, providing hundreds of hours of continuous use, minimizing downtime.
Portability: Lightweight and compact, ideal for handheld surveys and transport.
International Units: User-selectable units (mR/hr, µSv/hr, CPM, CPS) for global applicability.
Technical Specifications (Approximate):
Detector: Energy Compensated Halogen Quenched Geiger-Mueller (GM) tube
Detection Range: Gamma and X-rays from 40 keV to 2 MeV+
Measurement Range:
mR/hr: 0.1 to 1000 mR/hr
µSv/hr: 0.001 to 10.00 mSv/hr (1 to 10,000 µSv/hr)
CPM: 0 to 350,000 CPM
CPS: 0 to 5,000 CPS
Accuracy: Typically $\pm$15% from background to 1000 mR/hr (NIST traceable)
Display: 4-digit LCD with mode indicators, battery status, and analog bar graph
Audio Indicator: Internal click speaker (can be muted)
Alert: User-settable alert level
Power Source: 1 x 9-volt alkaline battery
Battery Life: Approx. 200 hours at normal background radiation levels
Operating Temperature: -20° C to 50° C (-4° F to 122° F)
Humidity: 10% to 70% non-condensing
Certifications: CE certified
Applications:
Industrial Radiography (RT) safety surveys
Nuclear power plant operations and maintenance
Medical and diagnostic imaging environments
Hazardous materials response
Environmental radiation monitoring
Laboratory and research safety
Personal radiation exposure monitoring
For dependable, high-range radiation measurement in any environment, choose the SE International Radiation Alert Monitor 1000EC – your trusted partner for radiation safety.
