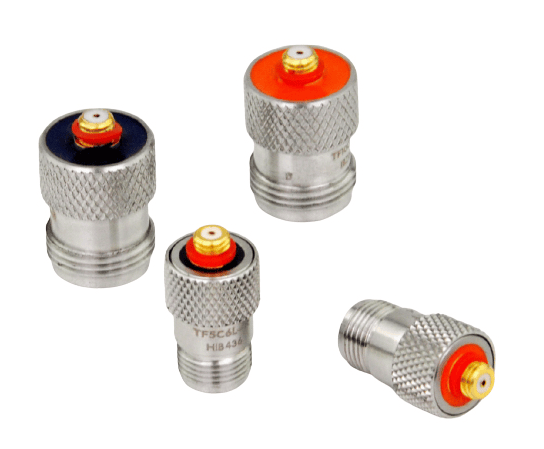

AUT — TOFD Probe, Quick Change Style (10 MHz, 0.250" Dia., Microdot)
High-Frequency TOFD Ultrasonic Probe | 1.5 Cycle, Non-Composite SKU: P-TOFD-q1002Overview
The AUT TOFD Probe (Quick Change Style) is a precision ultrasonic transducer designed for Time of Flight Diffraction (TOFD) inspections requiring high-resolution flaw detection and accurate defect sizing. Operating at 10 MHz with a 0.250" element diameter and a 1.5 cycle pulse configuration, this probe delivers excellent sensitivity for detecting small discontinuities in critical components.
The quick change design allows for rapid probe replacement and efficient integration into multi-probe and automated inspection systems, minimizing downtime during setup and operation. The microdot connector ensures secure and stable signal transmission, while the non-composite construction provides consistent acoustic performance and durability.
Engineered for both manual and automated TOFD applications, this probe is ideal for weld inspection and structural evaluation in industries such as oil & gas, power generation, and heavy fabrication where precision and reliability are essential.
What's Included
| Item | Details |
|---|---|
| TOFD Probe | 10 MHz, 0.250" diameter, 1.5 cycle — quick change style |
| Connector | Microdot interface |
| Protective Case | Storage and transport protection (if applicable) |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.5 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Probe Type | TOFD ultrasonic probe |
| Frequency | 10 MHz |
| Element Diameter | 0.250 in |
| Pulse Characteristics | 1.5 cycle |
| Connector Type | Microdot |
| Construction | Non-composite |
| Configuration | Quick change style |
| Application | Time of Flight Diffraction (TOFD) |
Performance Features
High-Frequency Resolution
10 MHz operation provides excellent sensitivity and resolution for detecting small defects and fine discontinuities.
Short Pulse (1.5 Cycle)
Improves axial resolution, enabling more accurate defect sizing and characterization.
Quick Change Design
Allows rapid probe replacement, improving efficiency in multi-probe and automated inspection systems.
Stable Signal Transmission
Microdot connector ensures reliable signal quality and secure connectivity during operation.
User-Friendly Design
- Quick installation and removal for efficient setup
- Compact probe size for flexible inspection configurations
- Secure connector interface for stable operation
- Designed for seamless TOFD system integration
Built for Industrial Environments
- Durable construction for field and automated use
- Designed for demanding NDT applications
- Reliable performance under continuous operation
- Suitable for harsh inspection conditions
Compatibility
Compatible with:
- TOFD ultrasonic testing systems
- Automated and manual scanning systems
- Microdot UT cables and connectors
- Weld inspection and structural evaluation setups
Ideal Applications
- TOFD weld inspection
- Detection and sizing of cracks and defects
- Pipeline and pressure vessel inspection
- Oil & gas and power generation industries
- Manufacturing and fabrication quality control
- Critical component inspection
About AUT
AUT is a provider of advanced ultrasonic testing solutions and accessories, offering high-performance probes and equipment for demanding NDT applications. Their products are designed to deliver precision, reliability, and efficiency in both automated and manual inspection systems.
