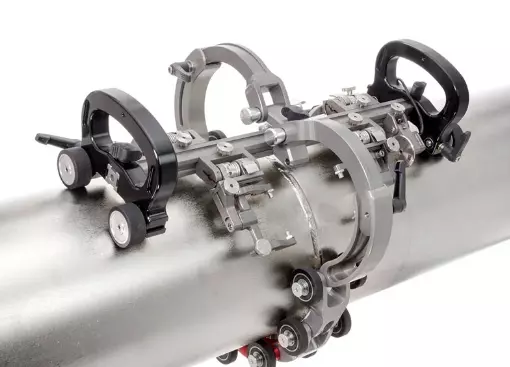

The JIReh ROTIX - 4 Probe Weld Frame Scanner is a highly efficient and versatile manual chain scanner engineered for comprehensive encoded ultrasonic inspection of circumferential pipe welds. Designed to accommodate up to four ultrasonic probes simultaneously, this robust scanner allows for a thorough examination of the weld and heat-affected zone in a single, time-saving pass.

This scanner is compatible with instruments like the Sonatest VEO via its integrated LEMO encoder connector, ensuring accurate positional data for reliable defect mapping and sizing. Its adjustable chain system provides a wide inspection range, accommodating pipe diameters from 7.6 to 96.5 cm (3 to 38 inches).

The ROTIX features user-friendly 5mm (0.197in) primary and secondary pivot buttons, likely for secure and adaptable probe holder mounting, allowing for precise probe positioning over the weld. The encoded scanning capability delivers accurate data for thorough analysis.

Built for stability and ease of use, the ROTIX utilizes a double wheel chain that straddles the weld, minimizing scanner drift and ensuring smooth operation. The urethane-coated wheels provide excellent traction, even on vertical surfaces. A built-in brake system allows the scanner to be securely locked in place on the pipe for consistent data acquisition.

Key Features:

• Efficient Multi-Probe Inspection: Accommodates up to four probes for comprehensive weld examination in one scan.

• Wide Pipe Diameter Range: Inspects pipes from 7.6 to 96.5 cm (3 to 38 inches).

• Precise Encoding: Features a LEMO encoder connector for accurate positional data with compatible instruments like Sonatest VEO.

• Stable and Smooth Operation: Double wheel chain and urethane-coated wheels ensure reliable scanning.

• User-Friendly Adjustments: Pivot buttons facilitate easy and secure probe positioning.

• Secure Positioning: Integrated brake system locks the scanner in place.

Benefits:

• Maximize Inspection Efficiency: Examine a larger area and multiple aspects of the weld in a single pass.

• Accurate Defect Characterization: Encoded data enables reliable flaw sizing and location mapping.

• Versatile Application: Suitable for a broad range of pipe sizes and weld configurations.

• Ensures Reliable Data Acquisition: Stable design minimizes scanner movement and maximizes data quality.

• Easy to Use in the Field: Designed for manual operation with intuitive adjustments.

Applications:

• Comprehensive circumferential weld inspection on pipes and tubes in industries such as oil & gas, petrochemical, and construction.

• Detection and sizing of various weld defects, including cracks, porosity, inclusions, and lack of fusion.

• Quality assurance during welding processes.

• In-service inspection and integrity assessment of pipelines and pressure vessels.
