NM01X6A002

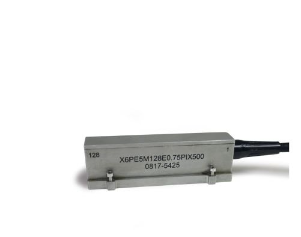

The SONATEST X6A-5M128E-0.75x10-SQX2.5 is a high-performance phased array transducer, part of the renowned SONATEST X6 Series, specifically engineered for efficient and detailed corrosion mapping on extensive surfaces and piping systems.

Operating at a center frequency of 5 MHz and featuring a linear array with a large number of 128 elements, this transducer is designed to generate significant linear (L-Scans or electronic scans), enabling rapid inspection coverage of large areas. The transducer's 10 mm elevation and a precise element pitch of 0.75 mm contribute to high-resolution imaging, which is crucial for the accurate detection and characterization of corrosion, material thinning, and other forms of degradation.

With the capability to utilize an aperture of up to 32 elements, the X6A-5M128E-0.75x10-SQX2.5 offers excellent defect sizing capabilities, effective material penetration, and a high signal-to-noise ratio, ensuring reliable data acquisition. The SQX2.5 designation indicates a secure and rapid Quick I-PEX (QX) connector and a practical 2.5-meter cable length, providing a dependable connection to compatible SONATEST phased array instruments and ample reach during inspections.

Key Selling Points:

• Specifically Optimized for Corrosion Mapping: Designed for efficient and comprehensive inspection of large surfaces and piping.

• 5 MHz Frequency for Balanced Resolution and Penetration: Provides excellent detail for detecting corrosion features.

• 128 Elements for Extensive Electronic Scanning: Enables rapid coverage of large inspection areas.

• Fine 0.75 mm Element Pitch for High-Resolution Imaging: Crucial for accurate defect detection and sizing.

• Large Aperture Capability (up to 32 Elements): Offers superior defect characterization and material penetration.

• Reliable Quick I-PEX (QX) Connector: Ensures fast and secure connection to instruments.

• Practical 2.5-Meter Cable Length: Provides ample reach during inspections.

• Part of the Trusted SONATEST X6 Series: Known for high quality and performance in phased array UT.

Benefits:

• Maximize Inspection Efficiency: Quickly and effectively map corrosion over large areas of interest.

• Achieve Accurate Defect Characterization: High-resolution imaging allows for precise detection and sizing of corrosion.

• Enhance Data Acquisition Speed: Phased array technology enables rapid electronic scanning.

• Ensure Reliable Connections: Quick I-PEX connector provides a secure and efficient interface.

• Increase Versatility in Corrosion Assessment: Suitable for a wide range of applications and material conditions.

Applications:

The SONATEST X6A-5M128E-0.75x10-SQX2.5 phased array transducer is an ideal solution for corrosion mapping in various industries, including:

• Oil and Gas: Inspection of pipelines, pressure vessels, and storage tanks.

• Chemical Processing: Assessment of corrosion in process piping and containment structures.

• Infrastructure: Evaluation of corrosion in bridges, supports, and other large structures.

• Marine: Inspection of ship hulls and offshore platforms for corrosion damage.

• Power Generation: Corrosion mapping of critical components in power plants.

The SONATEST X6A-5M128E-0.75x10-SQX2.5 phased array transducer delivers a powerful and efficient means of conducting comprehensive corrosion mapping, providing high resolution, rapid scanning capabilities, and the trusted performance of the SONATEST X6 Series.
