NM01IQI1D

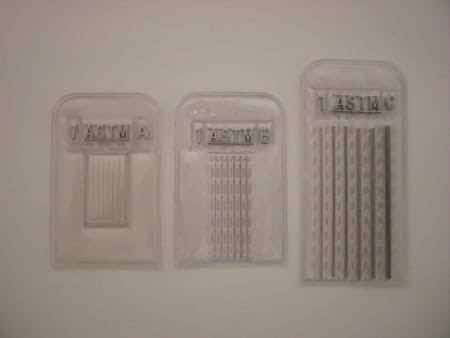

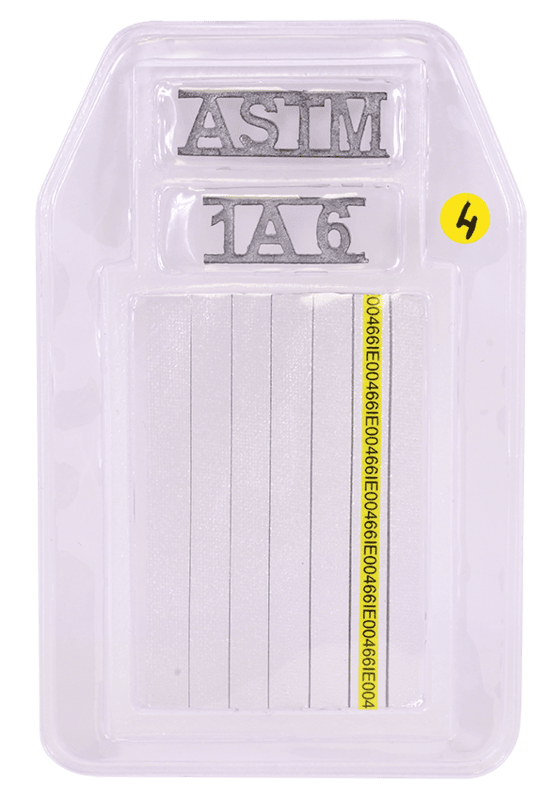

The ASTM E 747-97 Set D Wire Type Penetrameter is a high-quality image quality indicator (IQI) designed to evaluate the accuracy and sensitivity of radiographic images. This set is made from stainless steel, featuring wire lengths of 2 inches (50mm) encapsulated in vinyl for enhanced durability. Wire type penetrameters (IQIs) are a widely accepted alternative to plaque-type IQIs and are used for testing in compliance with ASTM E747 standards, which outline the design and manufacturing guidelines for wire IQIs in radiological applications.

Set D includes wire sizes 11 through 16, specified for measuring image quality in radiology as per ASTM E747 standards. The penetrameter is accepted by ASME Sec. V and AWS standards, meeting the demands of various applications, including pipeline inspection, structural integrity testing, and other radiographic quality assessments.

Key Features:

1. Standard Compliance:

   • ASTM E747 Standard: Conforms to ASTM E747 for image quality in radiology.
   • ASME Sec. V and AWS Acceptance: Approved as an alternative to plaque-type IQIs, making it suitable for a wide range of industrial applications.

2. Construction and Design:

   • Stainless Steel Wires: Durable and corrosion-resistant, ideal for consistent results in various testing environments.
   • Vinyl Encapsulation: Protects the wires from damage, enhancing durability and extending product life.

3. Precision Measurement:

   • Wire Sizes: Includes wire sizes 11 to 16 for effective measurement across different radiographic image quality levels.
   • High Sensitivity: Enables accurate detection of flaws and image resolution, crucial for industrial radiography quality assurance.

Specifications:

• Material: Stainless Steel

• Wire Length: 2 inches (50mm)

• Wire Sizes:

  • 16 - 2.50 mm / 0.100 inches
  • 17 - 3.20 mm / 0.126 inches
  • 18 - 4.06 mm / 0.160 inches
  • 19 - 5.10 mm / 0.200 inches
  • 20 - 6.40 mm / 0.250 inches
  • 21 - 8.00 mm / 0.320 inches

• Weight: 1 lb

• Dimensions: 3 x 3 x 1 inches

Applications:

The ASTM E 747-97 Set D is designed for professionals in the field of industrial radiology, providing essential tools for ensuring the accuracy of radiographic images in applications such as:

• Pipeline and Weld Inspection: Assesses weld quality and structural integrity.
• Construction and Infrastructure: Detects flaws in building materials and structural components.
• Aerospace and Manufacturing: Ensures defect-free parts and components in production environments.
