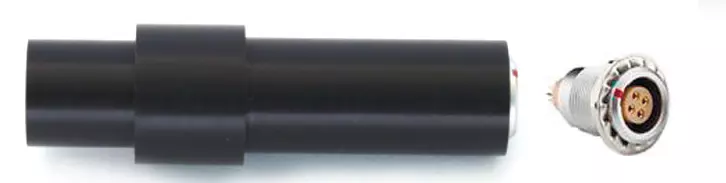

NM01CP13

The Conductivity Probe is specifically engineered for accurate sorting of nonferrous metals and for determining heat treatment conditions or metal fatigue. Designed to operate with 600 series models (600C, 600S, or 600D) equipped with Powerlink functionality, this probe provides high-precision measurements in both %IACS and MS/m formats. Additionally, it measures the coating or lift-off factor, ensuring versatile and reliable performance.

This probe utilizes a 60 kHz frequency for conductivity measurement, covering a wide range from 46 to 63.8 MS/m (0.8 to 110.0 %IACS). It features a Lemo 04 connector and is compatible with NFe (Non-Ferrous) materials, making it suitable for quality control, inspection, and metallurgical applications.

Key Specifications:

• Outer Diameter: 13mm / 0.5"
• Length: 70mm / 2.75"
• Frequency: 60 kHz
• Conductivity Measurement Range: 46 to 63.8 MS/m (0.8 to 110.0 %IACS)
• Connector: Lemo 04
• Compatible Material: Non-Ferrous (NFe)
• Compatibility: 600 Series (600C, 600S, 600D) with Powerlink functionality
• Technology: Powerlink-enabled for automated recognition by compatible instruments

How It Works:

The probe utilizes a four-point DC resistance technique and adheres to stringent NIST traceability standards. This conductivity measurement system uses Evident’s primary standards, maintained in a controlled environment for high accuracy and recertified periodically.

Certification Accuracy:

• Materials below 60 %IACS: ±0.35 %IACS
• Materials above 60 %IACS: ±0.5 %IACS
