NM01AM71313INT
Choose Quantity

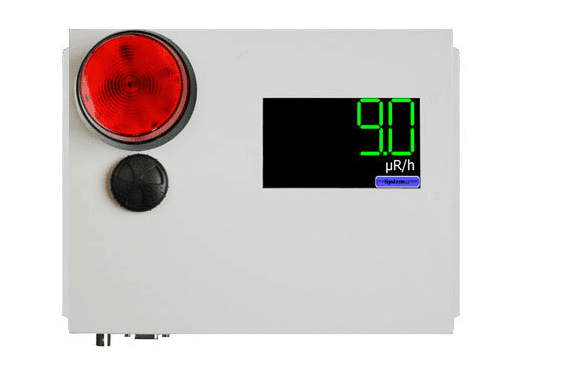

The Radiation Alert® Area Monitor is one of the most user friendly, all inclusive, state of the art radiation area monitors available. The easy to use interface is an intelligent resistive touch screen display featuring a large five digit LED readout.
It comes with either an internal or external detector and free software for monitoring every Radiation Alert® Area Monitor on your network. Includes user selectable warning indicators for low and high radiation alarm levels, and detector failure. Setup email and text alerts to receive alarms while on the go. All the settings are stored internally, even when power is disconnected. All units come with a Certificate of Conformance. NIST Source calibrations available upon request.
Technical Details:
Dead Time: User adjustable to compensate for dead time of the detector and electronics
High Voltage User adjustable from 200 to 1200 volts
Ethernet 10 Base-T connection for use with remote software for alarm indication and acknowledgment (Silence by remote)
Indicators Ultra-Bright Strobe and Audible Alarm. Can trigger up to three relays with DB-9 serial connection. USB VCP for computer data logging, can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote).
Linearity NIST Calibrated readings within 10% of true value with detector connected
Base unit Settings Settings for Base Units, Alarms and Calibration Information can be accessed through the Touch Screen Display or through the software
Base Units Can be set in µR/hr, mR/hr, µSv/hr, mSv/hr, CPM, kCPM, CPS, kCPS
Base Unit Settings Alarms and Calibration Information can be accessed through the Touch Screen Display or through the software.
Touch Screen Display 4.3 inch TFT 480×272 touch screen display with user friendly Programmable Units of Measurement and Audio and Visual Alarms. 5-digit LED display with 3 cm (1.5 in.) character height. 65K true colors capable of displaying full color images, animations, icons.
Response Time Varies automatically from 20 seconds to 2 seconds
Operating Range: 0.01 to 1500 mR/hr (0.1 – 15,000 µSv/hr)
