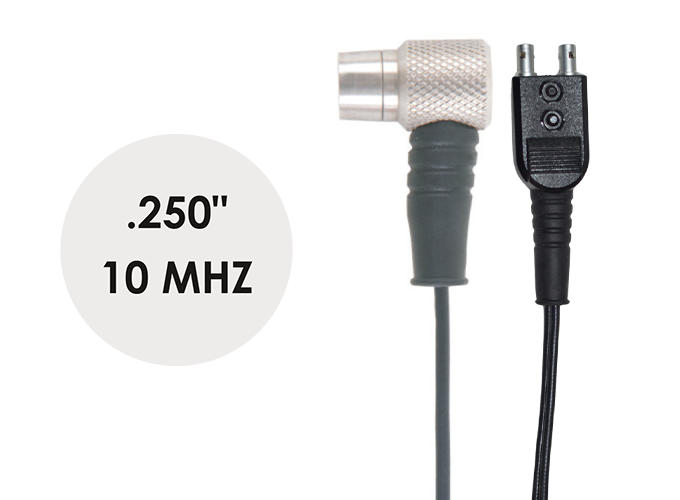

NM01T1024000

Dakota NDT 10.0 MHz Dual Element Transducer - Precision Thickness & Corrosion Monitoring

The Dakota NDT 10.0 MHz Dual Element Transducer is a high-frequency, precision-engineered ultrasonic probe designed for extremely accurate thickness measurement and advanced corrosion/pitting detection. Utilizing a dual-element (pitch-catch) design, this transducer is an indispensable tool for demanding applications where superior near-surface resolution and reliable measurements on challenging surfaces are paramount.

Operating at a high frequency of 10.0 MHz, this transducer delivers exceptional resolution, allowing for precise measurement of very thin materials and the detection of minute material loss due to corrosion or erosion. The high frequency provides a tight, focused beam, making it ideal for inspecting small diameters, curved surfaces, and areas with significant pitting.

The 1/4-inch (6.35 mm) element diameter offers a focused beam that is highly effective for spot-checking, scanning intricate geometries, and pinpointing localized areas of corrosion. The dual-element design employs separate transmitting and receiving elements, acoustically isolated from each other. This configuration minimizes the probe's "dead zone" (initial pulse ringing), dramatically improves near-surface resolution, and enhances the ability to measure accurately on rough, corroded, or coated surfaces.

This transducer is specifically designed for reliable performance on a range of critical materials including:

• Aluminum

• Various Steels (carbon, stainless, etc.)

Built with Dakota NDT's commitment to quality, this probe features a durable housing designed to withstand the rigors of continuous industrial use. Its precise acoustic design ensures consistent and reliable performance, providing clear and stable readings for confident thickness measurements and remaining wall thickness calculations.

Key Features & Benefits:

• High Frequency 10.0 MHz: Provides superior resolution for measuring thin materials and detecting small material loss due to corrosion.

• Dual Element (Pitch-Catch) Design: Minimizes dead zone, improves near-surface resolution, and enhances accuracy on rough, pitted, or coated surfaces.

• 1/4-inch (6.35 mm) Element Diameter: Offers a focused beam for precise measurement on small or complex geometries.

• Optimized for Diverse Materials: Excellent performance on Aluminum and various Steels.

• Precision Thickness Measurement: Ideal for corrosion/erosion monitoring, remaining wall thickness, and precise thickness gauging.

• Robust Construction: Durable housing built for demanding industrial environments and long-term reliability.

• Reliable Performance: Delivers stable and repeatable readings, crucial for accurate asset integrity management.

Applications:

• Corrosion/erosion monitoring and remaining wall thickness measurement in pipes, tanks, and vessels.

• Precision thickness gauging of thin-walled components in aerospace, automotive, and manufacturing.

• Inspection of materials with rough, pitted, or coated surfaces.

• Quality control in industries handling Aluminum, and various Steels.

• Detection of localized pitting and material degradation.

Equip your NDT toolkit with the Dakota NDT 10.0 MHz Dual Element Transducer for unparalleled accuracy and reliability in your most critical thickness gauging and corrosion assessment tasks.
