NM01QCG3750

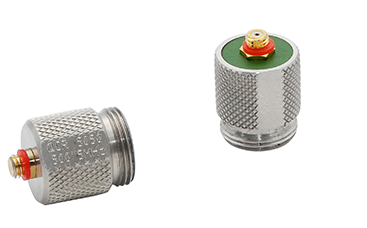

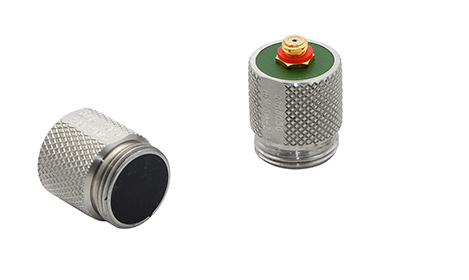

QUICK CHANGE HIGH GAIN SHEAR WAVE TRANSDUCERS ( QC ), 5 MHZ, 3/8", DAKOTA NDT "5 MHZ, 3/8" ONLY"
The Dakota NDT Quick Change High Gain Shear Wave Transducer is a specialized ultrasonic transducer designed for efficient and reliable angle beam inspections. This particular model operates at a center frequency of 5 MHz with a 3/8" (0.375 inch) element diameter, offering an excellent balance of sensitivity and resolution for a wide range of materials and weld inspection applications.
The "Quick Change (QC)" designation signifies that this transducer is designed for rapid interchangeability with various wedges, allowing for quick adaptation to different inspection angles and material geometries without the need for tools. This feature significantly enhances inspection speed and versatility, particularly in situations requiring multiple angle inspections or when working in confined spaces.
The "High Gain" characteristic indicates that this transducer is engineered to produce a strong ultrasonic signal, maximizing the detection of small reflectors and improving penetration in attenuating materials. This is crucial for identifying critical flaws and ensuring thorough material evaluation.
Key Selling Points:
Quick Change Design: Enables fast and easy interchangeability with different shear wave wedges, improving inspection efficiency.
High Gain Performance: Delivers a strong ultrasonic signal for enhanced detection of small flaws and better penetration.
Optimal Frequency and Element Size: The 5 MHz frequency and 3/8" diameter offer a versatile balance of sensitivity and resolution for various applications.
Designed for Shear Wave Testing: Specifically engineered for angle beam inspections, ideal for weld evaluation and flaw detection.
Reliable Dakota NDT Quality: Backed by the trusted reputation of Dakota NDT for high-performance ultrasonic transducers.
Benefits:
Increased Inspection Speed and Versatility: Quickly adapt to different inspection requirements without tools.
Improved Flaw Detection Sensitivity: The high gain output enhances the ability to detect small discontinuities.
Versatile Application Range: Suitable for a wide variety of materials and weld configurations.
Reliable and Consistent Performance: Dakota NDT transducers are known for their quality and durability.
Enhanced Productivity: Faster transducer changes and strong signal performance contribute to increased inspection throughput.
Applications:
General weld inspection across various industries.
Detection and sizing of flaws such as cracks, lack of fusion, and porosity in welds.
Inspection of pipes, pressure vessels, and structural components.
Quality control in manufacturing and fabrication processes.
Applications requiring efficient and adaptable angle beam testing.
The Dakota NDT Quick Change High Gain Shear Wave Transducer (QC), 5 MHz, 3/8" is an essential tool for NDT professionals seeking a high-performance, versatile, and efficient transducer for their shear wave inspection needs. Its quick change capability and high gain output make it an excellent choice for a wide range of critical applications.
